Engine Rpm Sensor

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

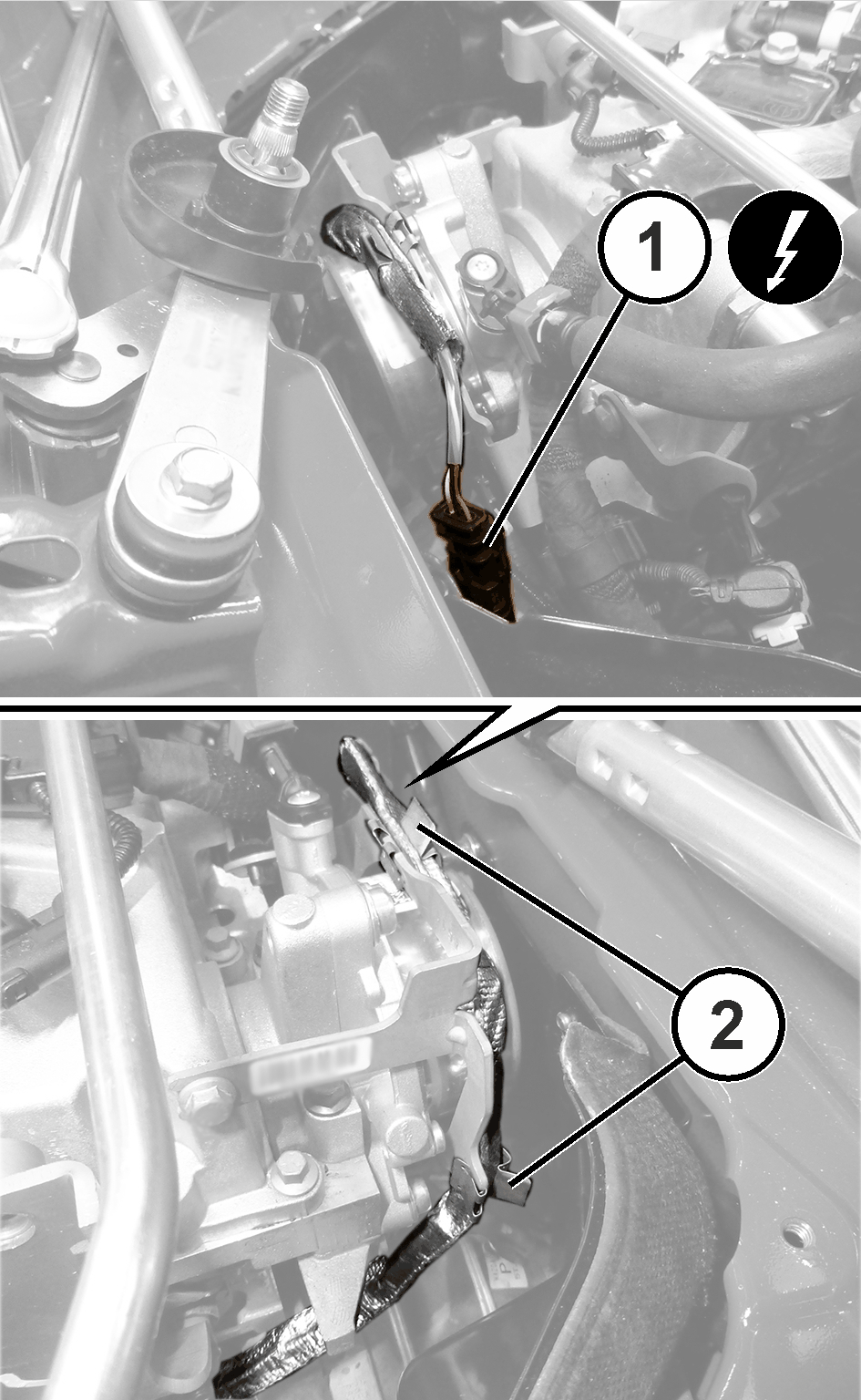

4. Disconnect the electrical connection (1) for the engine rpm sensor.
5. Release the wiring from the retaining clips (2).

   Courtesy of CHRYSLER GROUP, LLC

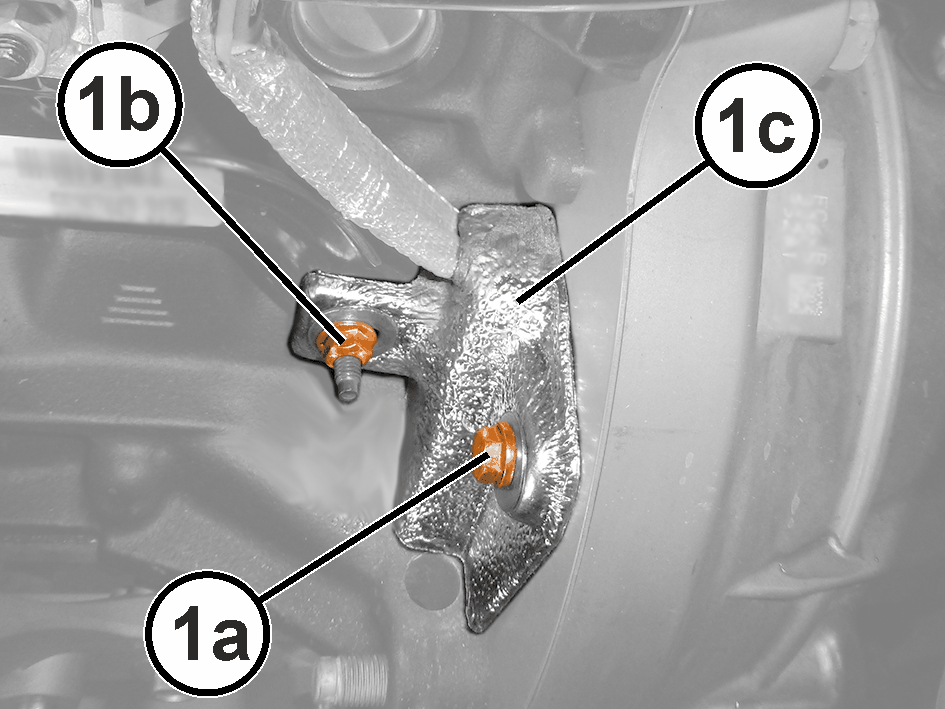

6. Undo the screw (1a) and the nut (1b) and remove the heat shield (1c).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Keep the sensor away from magnetic fields.

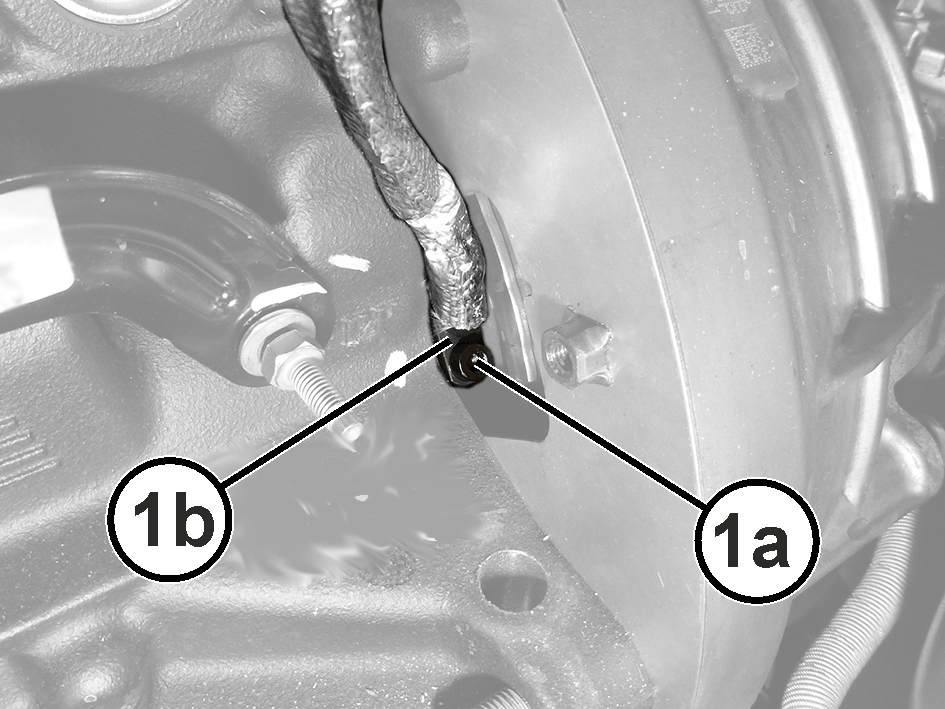

7. Undo the bolt (1a) and remove the engine rpm sensor (1b).

INSTALLATION

1. Place the engine rpm sensor in its housing and tighten the screw to the proper Specification. Refer to TORQUE SPECIFICATIONS  .
2. Refit the heat shield back in its housing and tighten the screw and nut.
3. Attach the wiring to the retaining clip.
4. Connect the electrical connection for the engine rpm sensor.
5. Install the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
6. Connect the negative battery terminal.
7. Remove the support and lower the vehicle.
