Removal And Installation

REMOVAL

1. Disconnect the negative battery cable.
2. Remove the parking brake lever. Refer to LEVER, PARKING BRAKE, REMOVAL AND INSTALLATION .
3. Remove the floor console rear lining and trim. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
4. Remove the transmission gear shifter. Refer to LEVER, SHIFT, REMOVAL AND INSTALLATION .
5. Remove the propeller shaft. Refer to REMOVAL AND INSTALLATION .
6. Remove the crossmember. Refer to CROSSMEMBER, FRONT REINFORCEMENT, REMOVAL AND INSTALLATION , CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION , CROSSMEMBER, PEDESTRIAN IMPACT, REMOVAL AND INSTALLATION , CROSSMEMBER, TRANSMISSION, REMOVAL AND INSTALLATION , CROSSMEMBER, UNDERBODY TUNNEL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

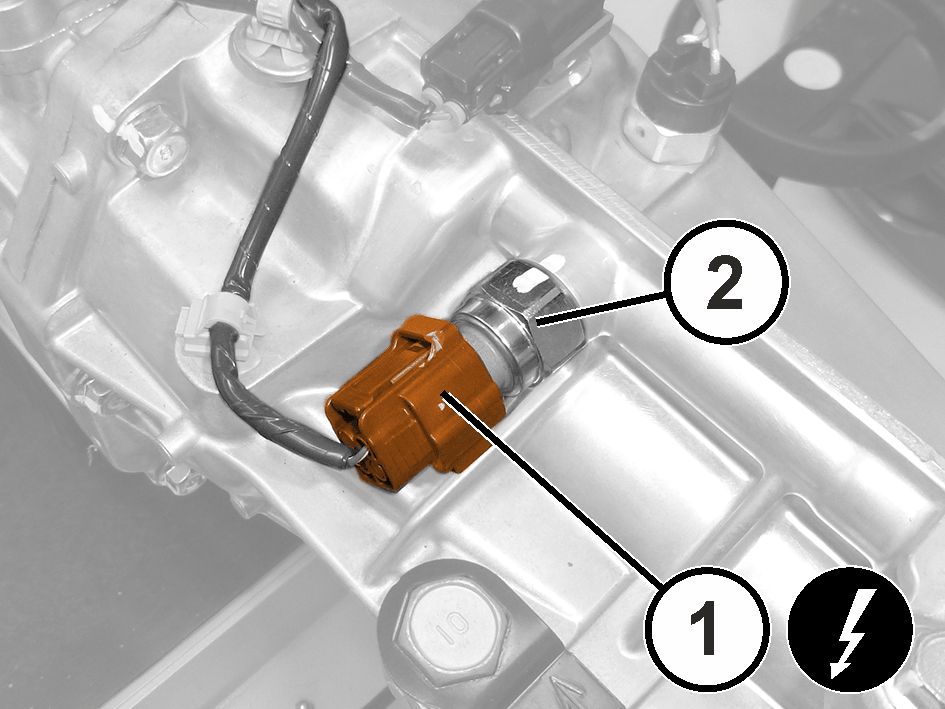

7. Disconnect the wiring harness connector (1) from the neutral position sensor.
8. Remove the neutral gear lever sensor (2).

INSTALLATION

1. Install the neutral position sensor.
2. Connect the electrical connector to the neutral position sensor.
3. Install the crossmember. Refer to CROSSMEMBER, FRONT REINFORCEMENT, REMOVAL AND INSTALLATION , CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION , CROSSMEMBER, PEDESTRIAN IMPACT, REMOVAL AND INSTALLATION , CROSSMEMBER, TRANSMISSION, REMOVAL AND INSTALLATION , CROSSMEMBER, UNDERBODY TUNNEL, REMOVAL AND INSTALLATION .
4. Install the propeller shaft. Refer to REMOVAL AND INSTALLATION .
5. Install the transmission gear shifter. Refer to LEVER, SHIFT, REMOVAL AND INSTALLATION .
6. Install the floor console rear lining and trim. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
7. Install the parking brake lever. Refer to LEVER, PARKING BRAKE, REMOVAL AND INSTALLATION .
8. Connect the negative battery cable.
