Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the window regulator assembly. Refer to REGULATOR, WINDOW, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

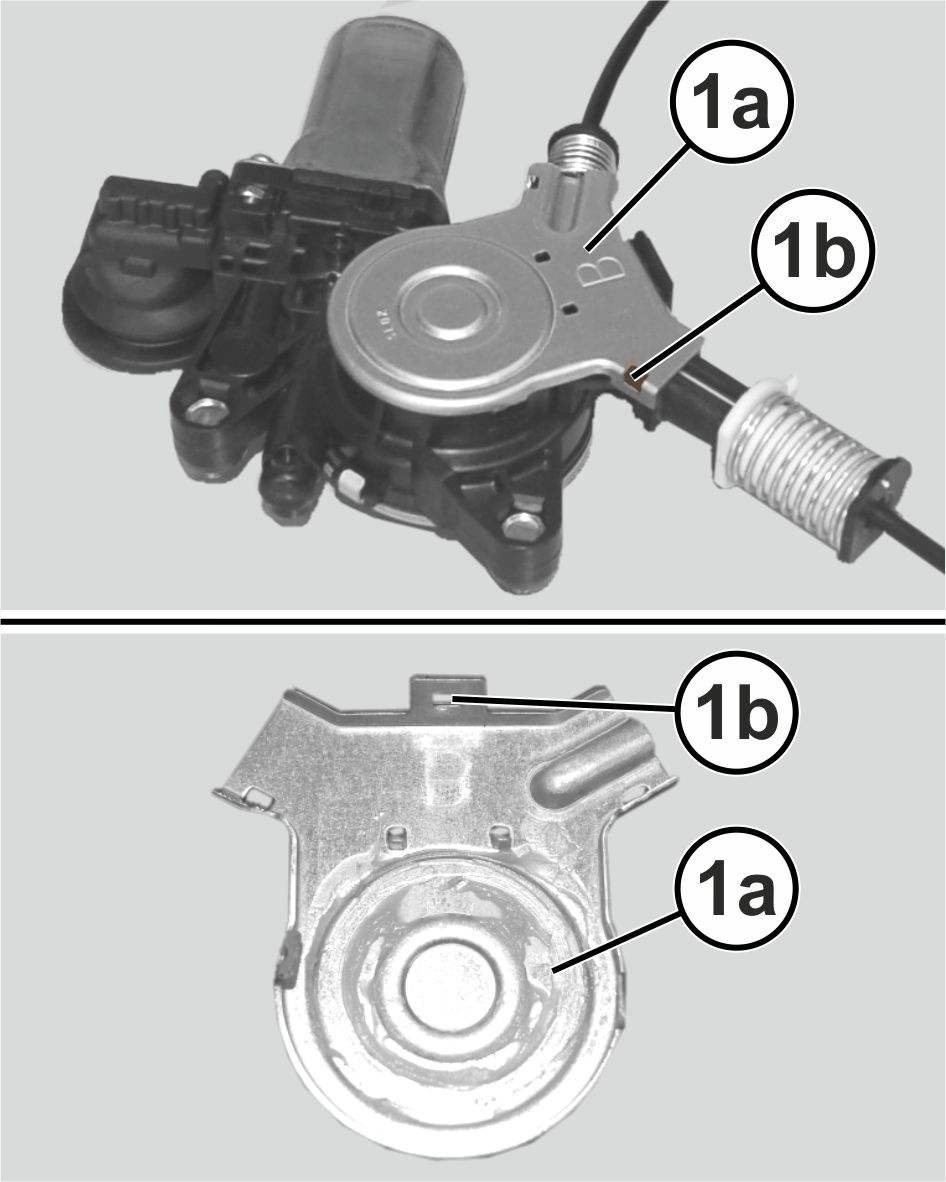

3. Disengage the protection cover retainers (1b) to remove the cover (1a).

   Courtesy of CHRYSLER GROUP, LLC

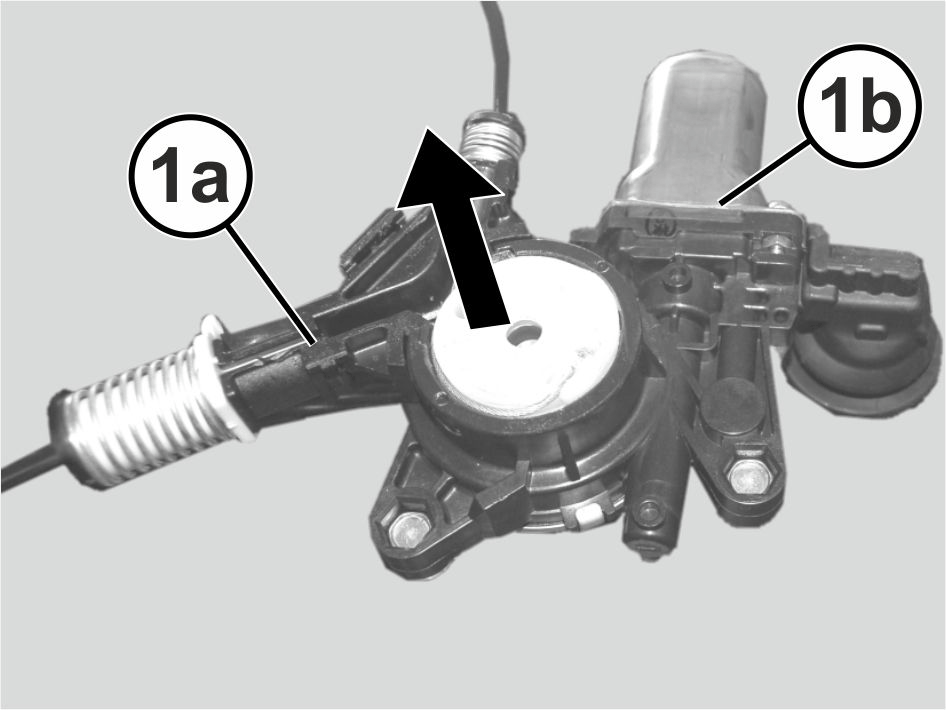

4. Pull away the window regulator to window regulator motor attachment (1a).
5. Remove the power window motor (1b).

INSTALLATION

1. Assemble the window regulator motor to the window regulator.
2. Install the protection cover by engaging it to the retainers on the regulator to regulator motor attachment.
3. Install the window regulator assembly. Refer to REGULATOR, WINDOW, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
