Removal And Installation: Installation

NOTE:

Check that the amplifier is not damaged.

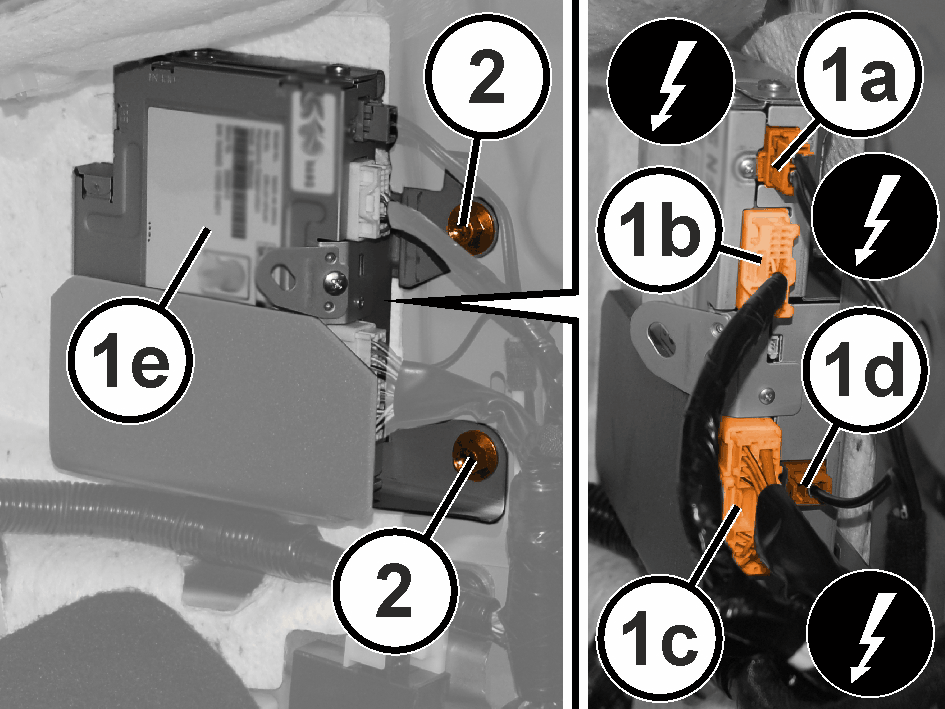

GC0180554Courtesy of CHRYSLER GROUP, LLC
  1. Install the two nuts (2) for the Radio Receiver Node (RRN) (1e) and tighten the nuts securely.
  2. Connect the wire harness connectors (1a), (1b), (1c) and (1d) for the RRN (1e).
  3. Install the passenger cowl side trim panel. Refer to PANEL, COWL TRIM, SIDE, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
