Removal And Installation: Removal

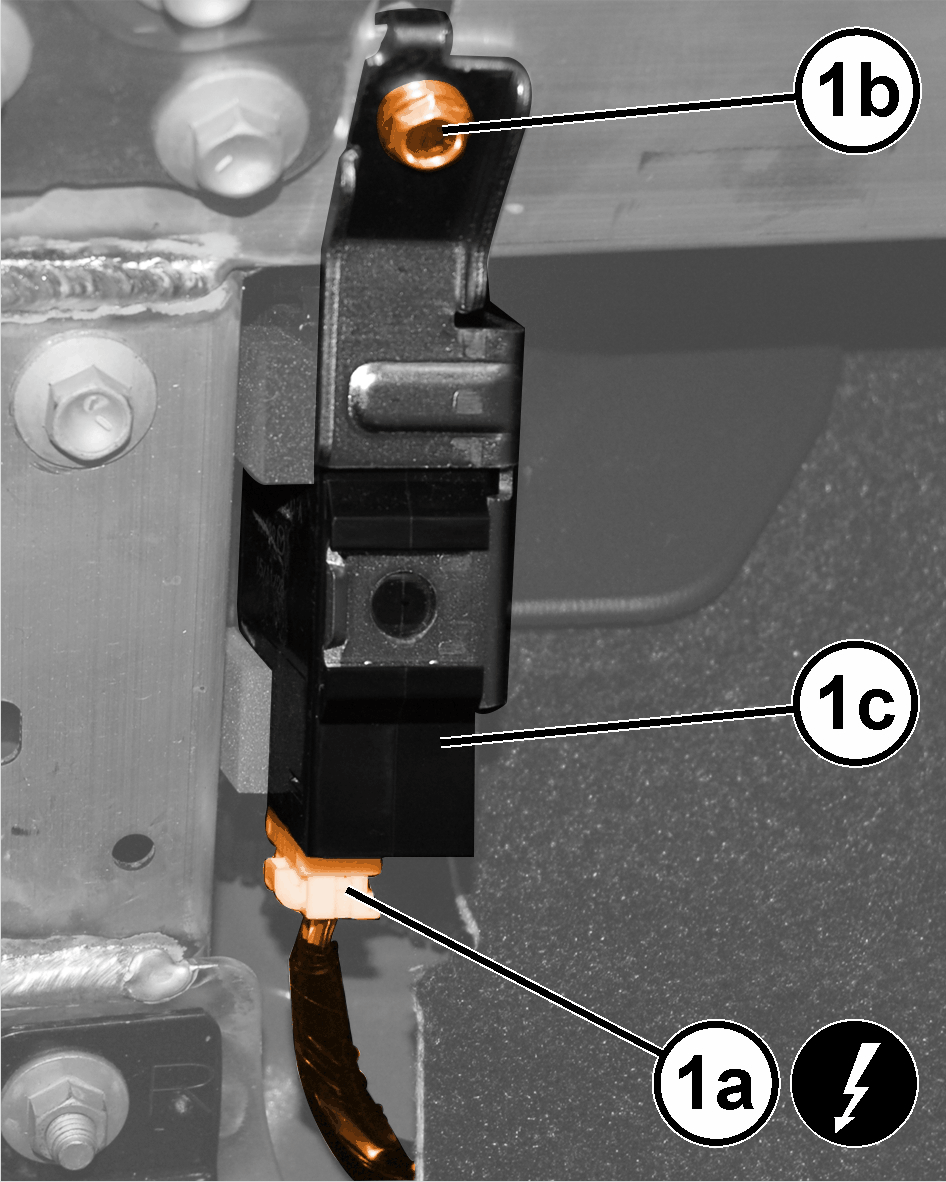

GC0176197Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the passenger compartment back trim panel. Refer to PANEL, BACK TRIM, REMOVAL AND INSTALLATION .
  3. Disconnect the wire harness connectors (1a) and remove the screw (1b) for the park assist module and bracket (1c).
