Description And Operation: Description
The keyless ignition receiver module works with the Passive Entry (PE) System, Remote Keyless Entry (RKE) System, Tire Pressure Monitoring (TPM), and vehicle theft system.

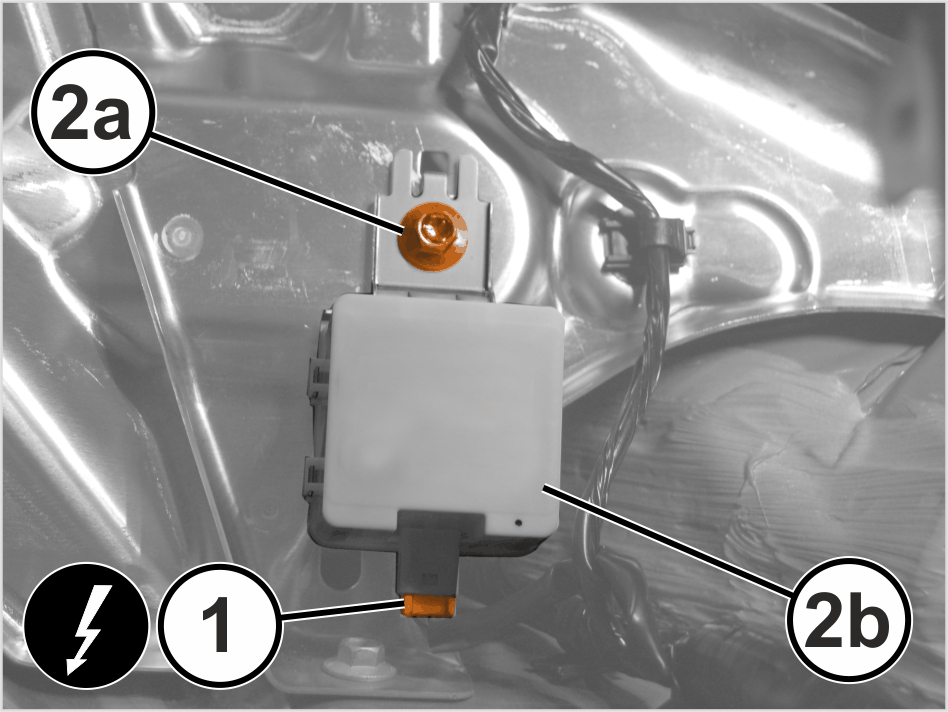

The keyless ignition receiver module (2b) is located to the rear of the vehicle behind the left side soft top compartment lining, and is mounting using one dedicated mounting bolt (2a) and has one electrical harness connector (1).
