Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Move the driver set to the full forward position.

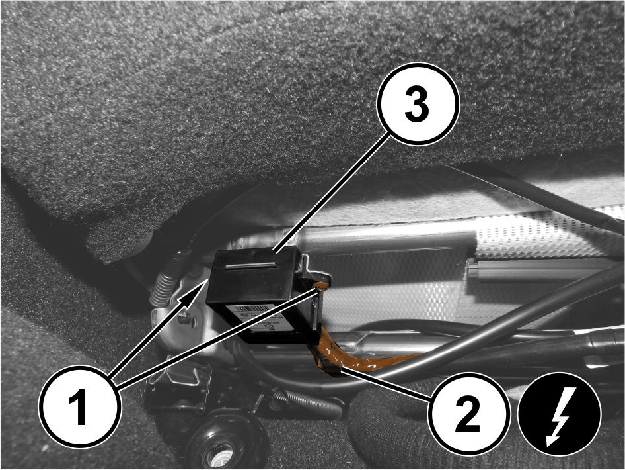

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect the wire harness connector (2) from the Heated Seat Module (HSM) (3).
4. Remove the two screws (1) and the HSM.

INSTALLATION

1. Install the HSM and the two screws, securely tighten.
2. Connect the wire harness connector to the HSM.
3. Connect the negative battery cable.
