Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

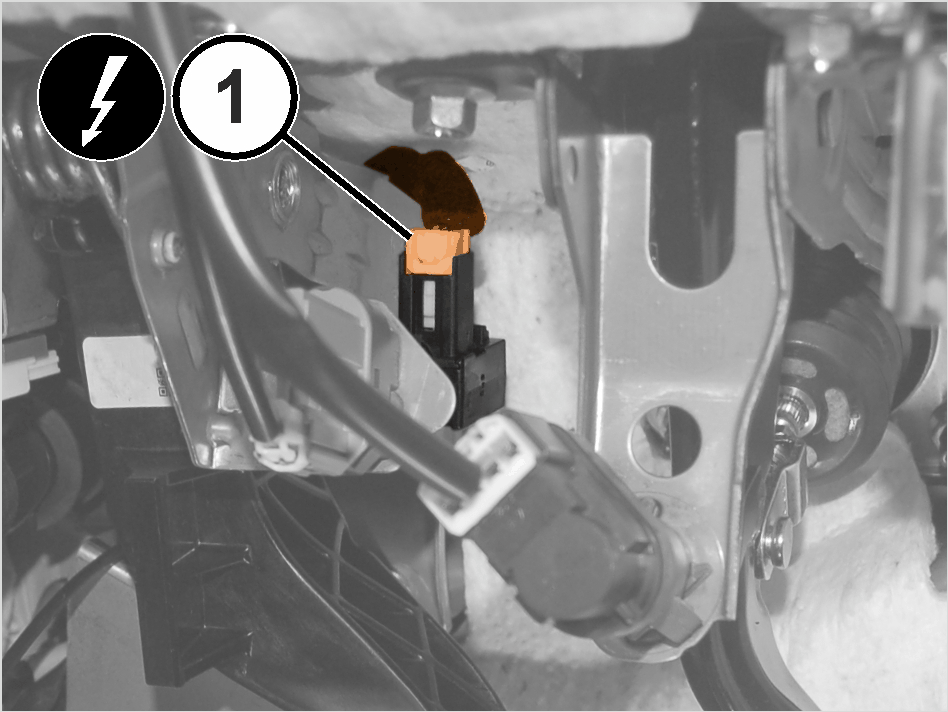

2. Disconnect the interlock switch wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

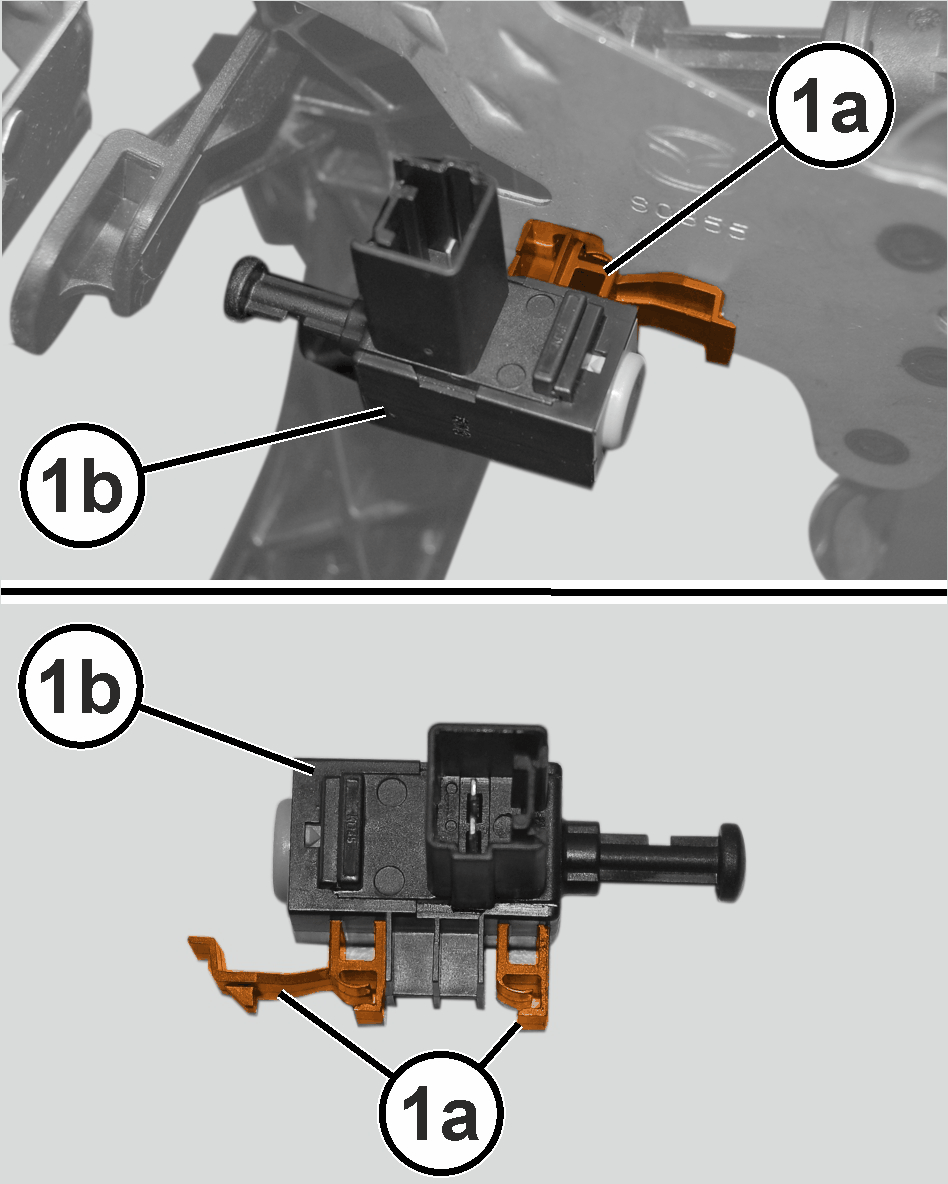

3. Disengage the retaining clips (1a) and remove them from the interlock switch (1b).

INSTALLATION

1. Check that the interlock switch is not damaged.
2. Install the interlock switch back in its housing, engaging the retaining clips.
3. Connect the interlock switch wire harness connector.
4. Connect the negative battery cable.
