Removal And Installation: Removal
NOTE:
Before removing and installing the Driver AirBag (DAB), the following preliminary operations must be carried out.
Turn the ignition off.
Turn off the instrument panel.
Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Wait for at least 1 minute before continuing.
FOLLOW ALL THE RECOMMENDED SAFETY INSTRUCTIONS. Refer to WARNING .
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

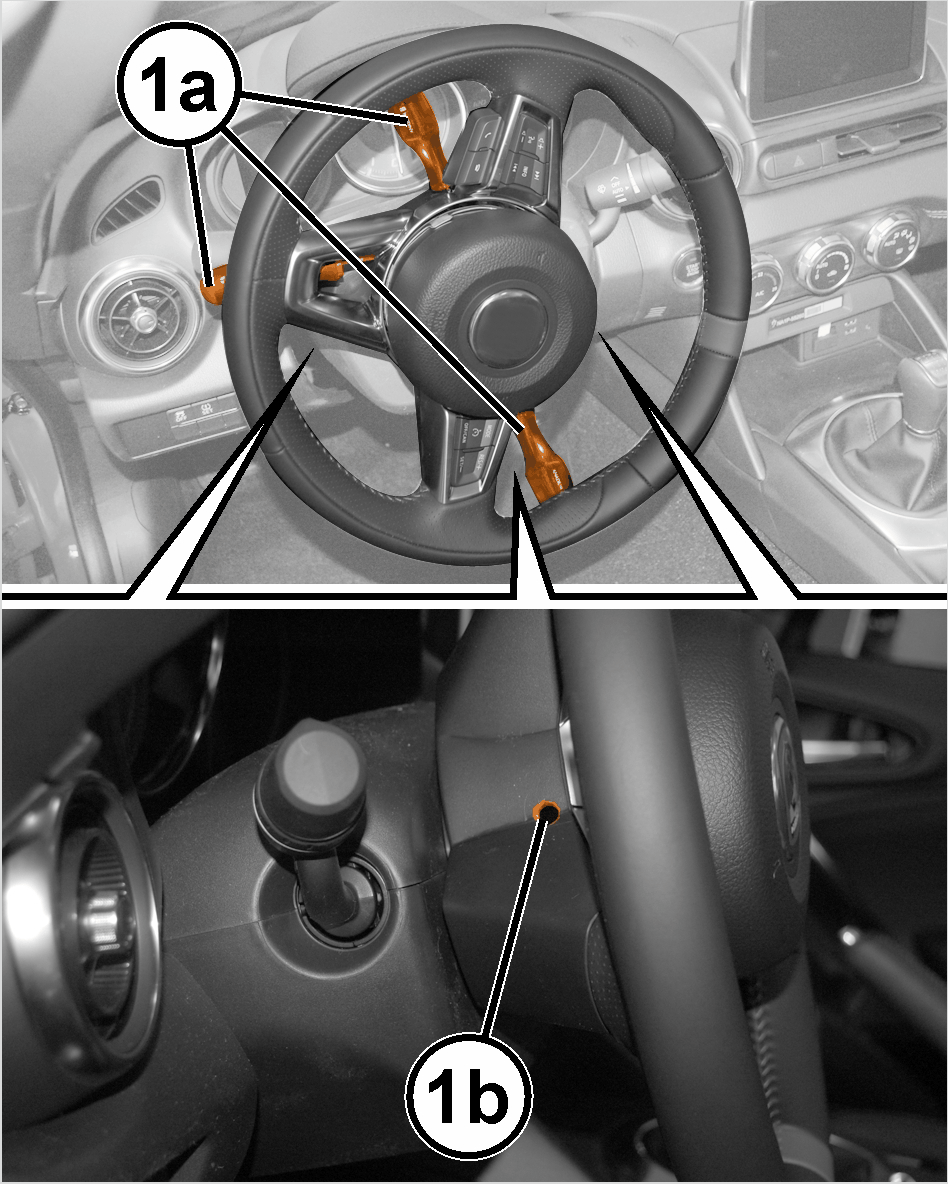

- Working on three sides of the DAB, place suitable screwdrivers (1a) in the holes (1b).

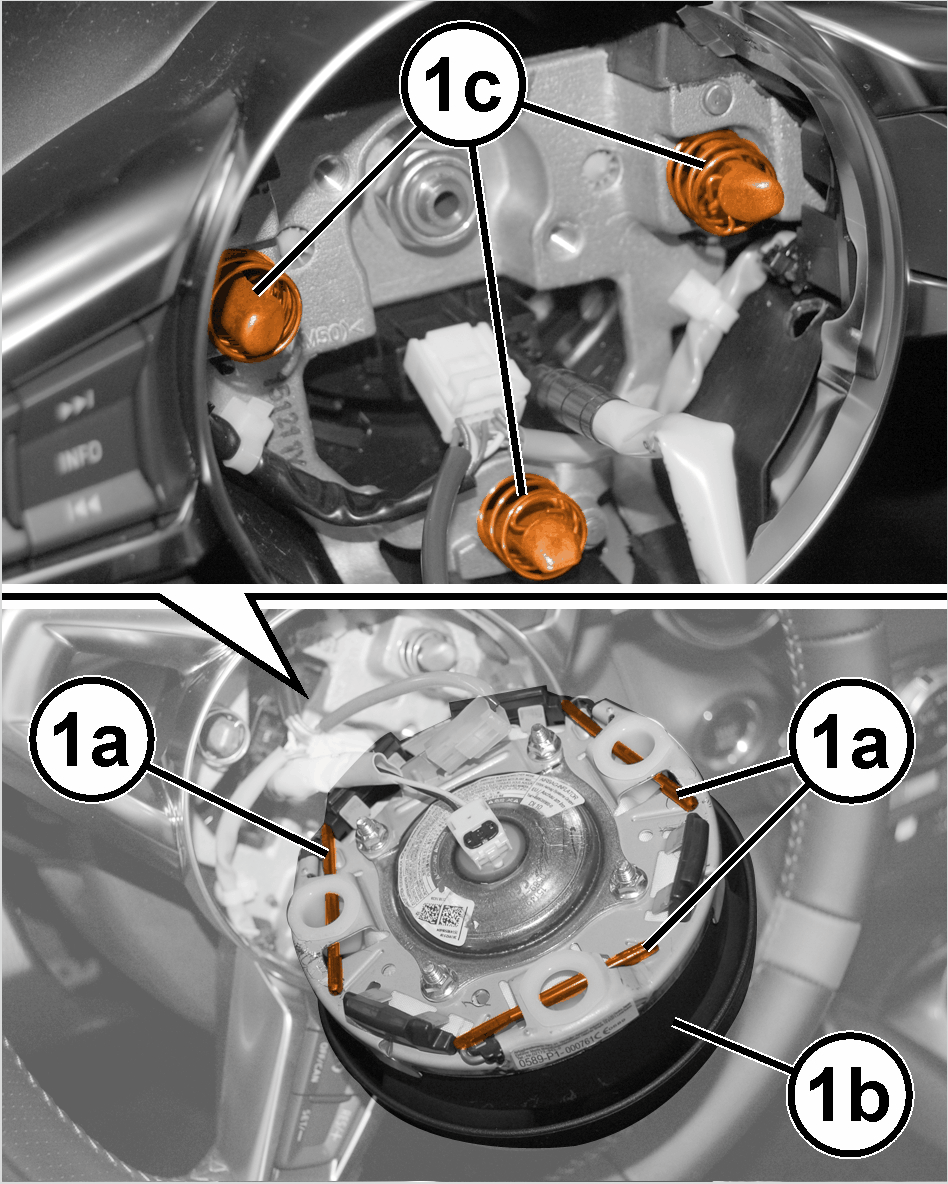

- Working on three sides of the DAB, push the screwdrivers onto the metal stops (1a) of the DAB (1b), until they are released from the steering wheel retainers (1c).
- Move the DAB (1b) slightly.

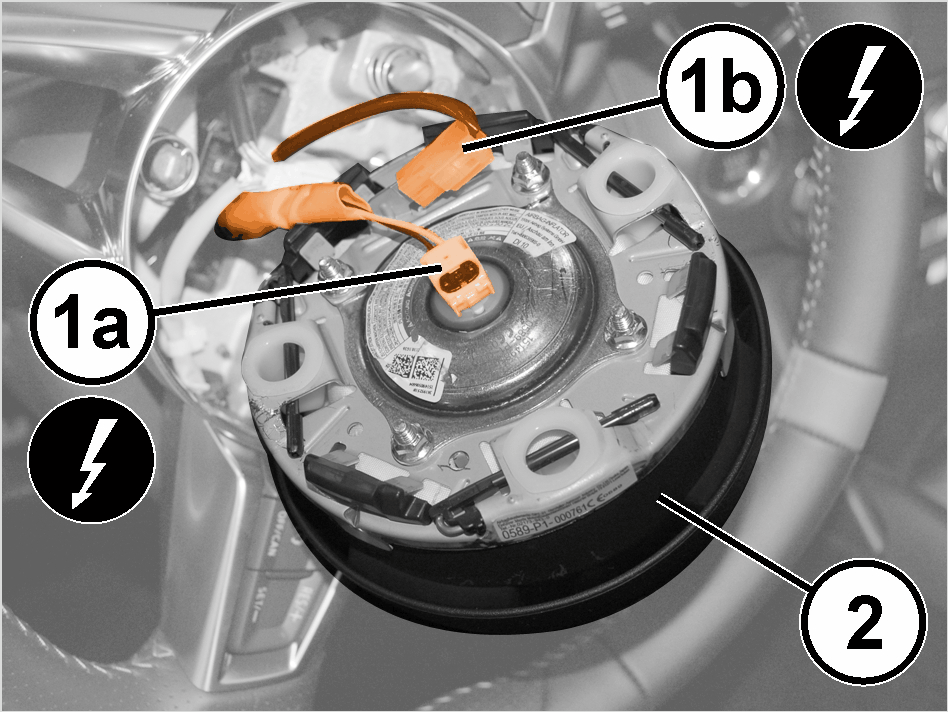

- Disconnect the wire harness connectors (1a, 1b) from the DAB (2).
- Keep the DAB.NOTE:
Place the DAB in the special cabinet, resting it on a free surface with the bag facing upwards.
