Module-Power Top Control

Harness-Family: Power_Top

Color: BLACK

Gender: FEMALE

Part Number: 185760-1

Part Description: Not Available

Connector No: D2353

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 16

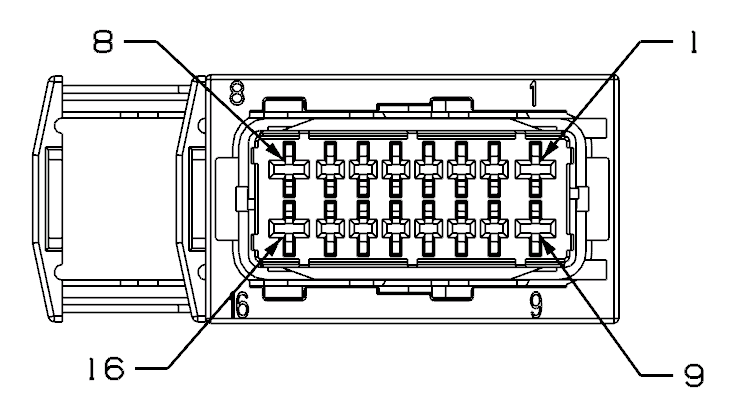

Fig 1: Module-Power Top Control Connector End View

Courtesy of CHRYSLER

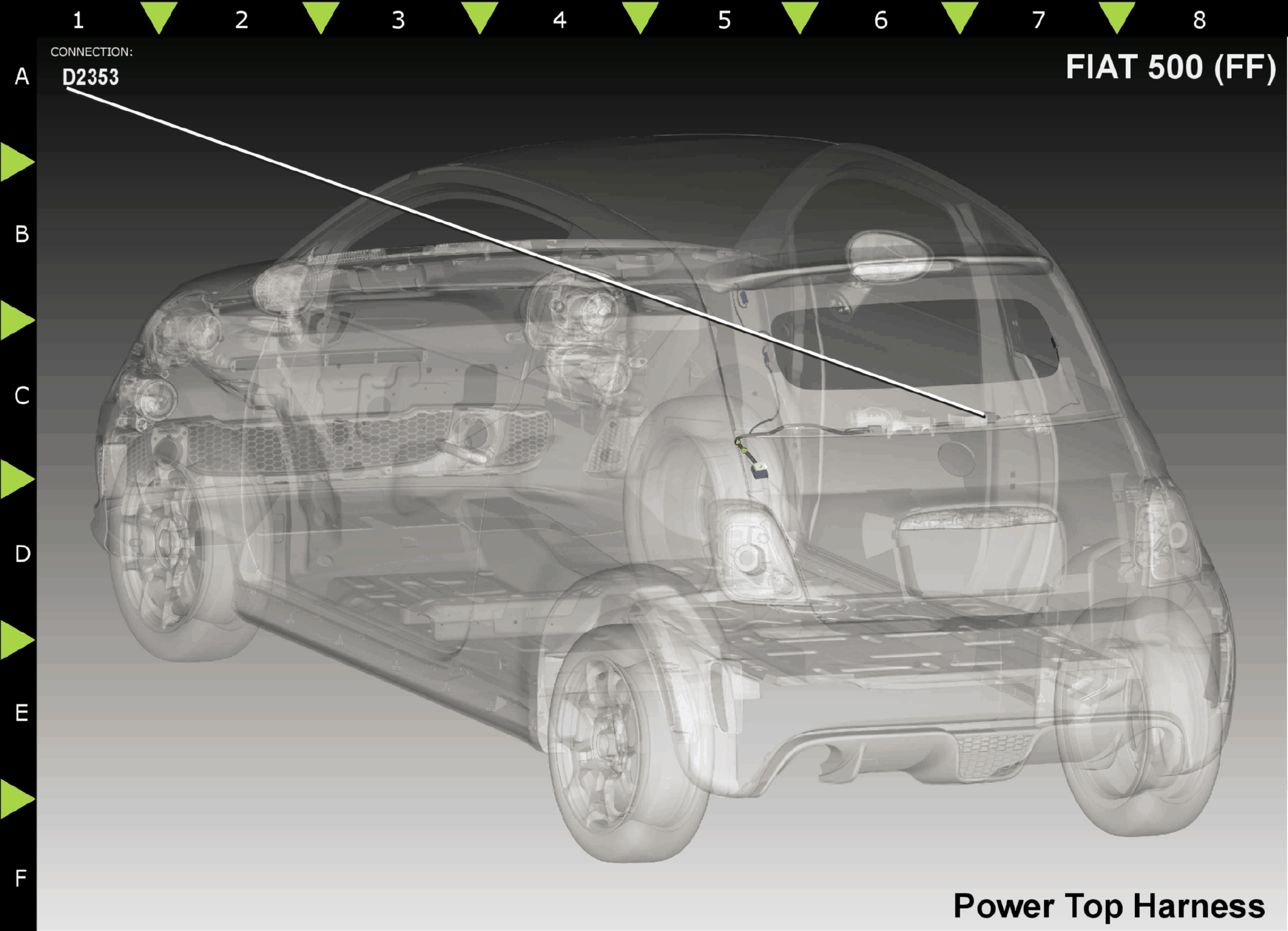

Fig 2: Module-Power Top Control Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A130

DB/BR

FUSED B(+)

N/A

Z916

GROUND

N/A

D401

VT/DG

LIN BUS 1

N/A

YL/BR

SUNROOF CLOSE SWITCH SENSE

N/A

YL/BK

SUNROOF OPEN SWITCH SENSE

N/A

Q986

POWER TOP RETRACTED DRIVER

N/A

Z941

DG/BR

GROUND

N/A

Q981

VT/DB

TONNEAU RETRACTED LIMIT SWITCH SIGNAL

N/A

Q987

POWER TOP MOTOR SOLENOID SIGNAL

N/A

Q982

DB/YL

TONNEAU EXTENDED LIMIT SWITCH SIGNAL

N/A

Q985

POWER TOP EXTENDED DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
