Module-Body Control C7

Harness-Family: Body_Front

Color:

Gender: FEMALE

Part Number: 10846266

Part Description: - -

Connector No: D2962G

Option:

Repair Kit Part Number: Not Available

Cavity Count: - -

Fig 1: Module-Body Control C7 Connector End View

GCWD1080229

Courtesy of CHRYSLER

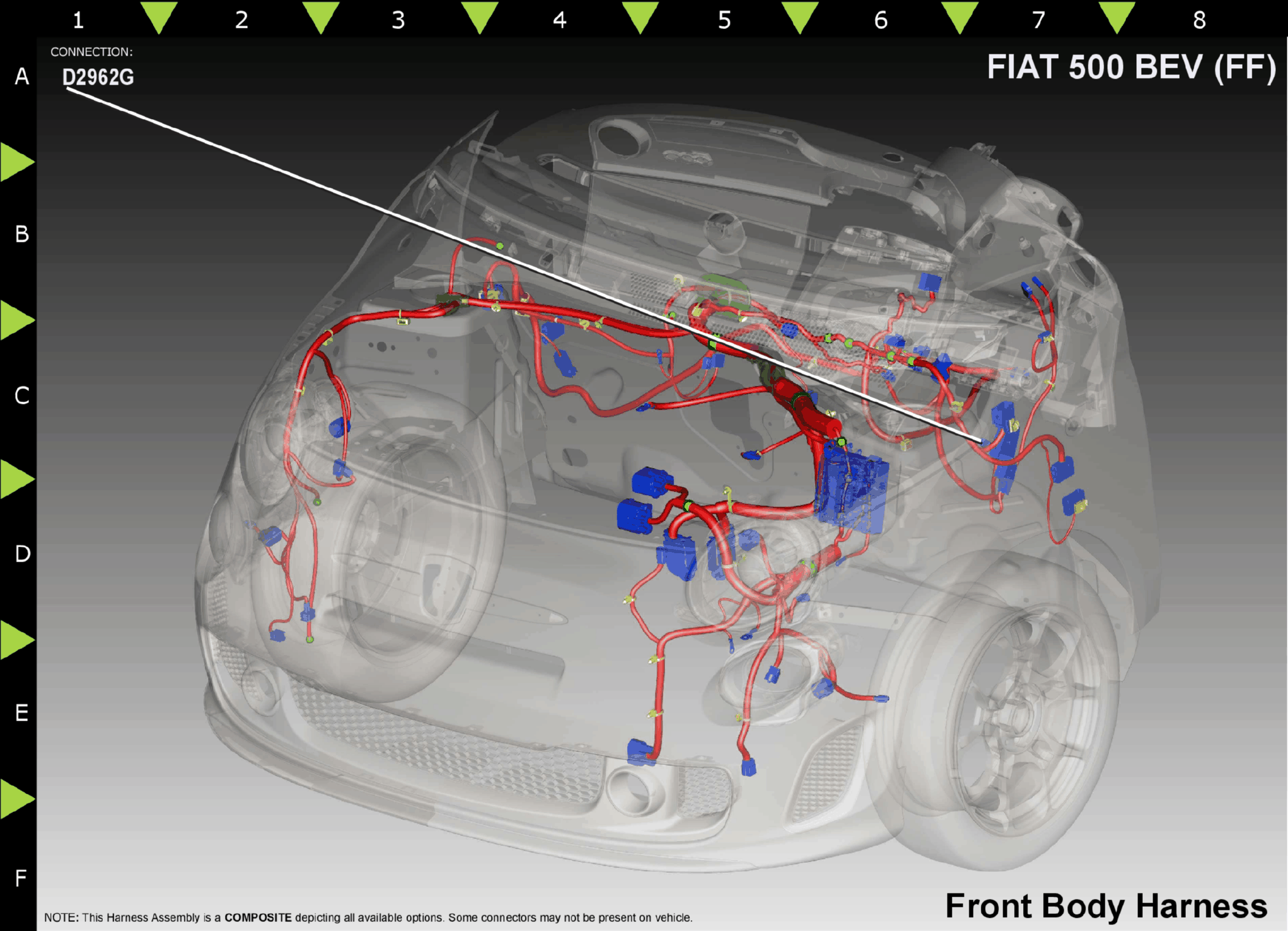

Fig 2: Module-Body Control C7 Component Location

GCWD1142541

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A101

RD/BK

6

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
