Fan Module-Radiator Cooling C1 (BEV)

Harness-Family: Body_Front

Color: BLACK

Gender: FEMALE

Part Number: 13873952

Part Description: Not Available

Connector No: D3022A

Option: BEV

Repair Kit Part Number: Not Available

Cavity Count: 4

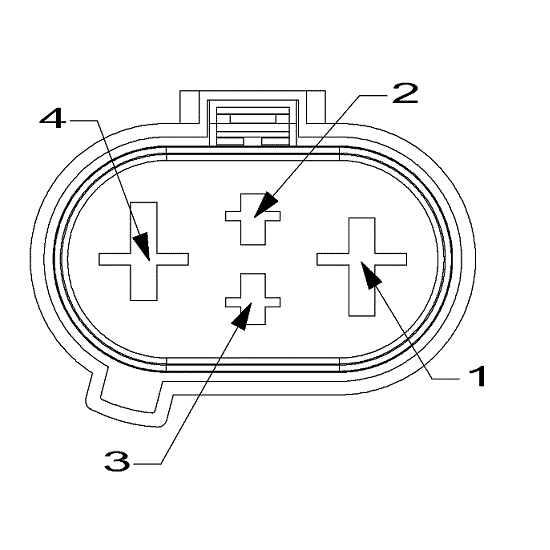

Fig 1: Fan Module-Radiator Cooling C1 Connector End View (BEV)

Courtesy of CHRYSLER

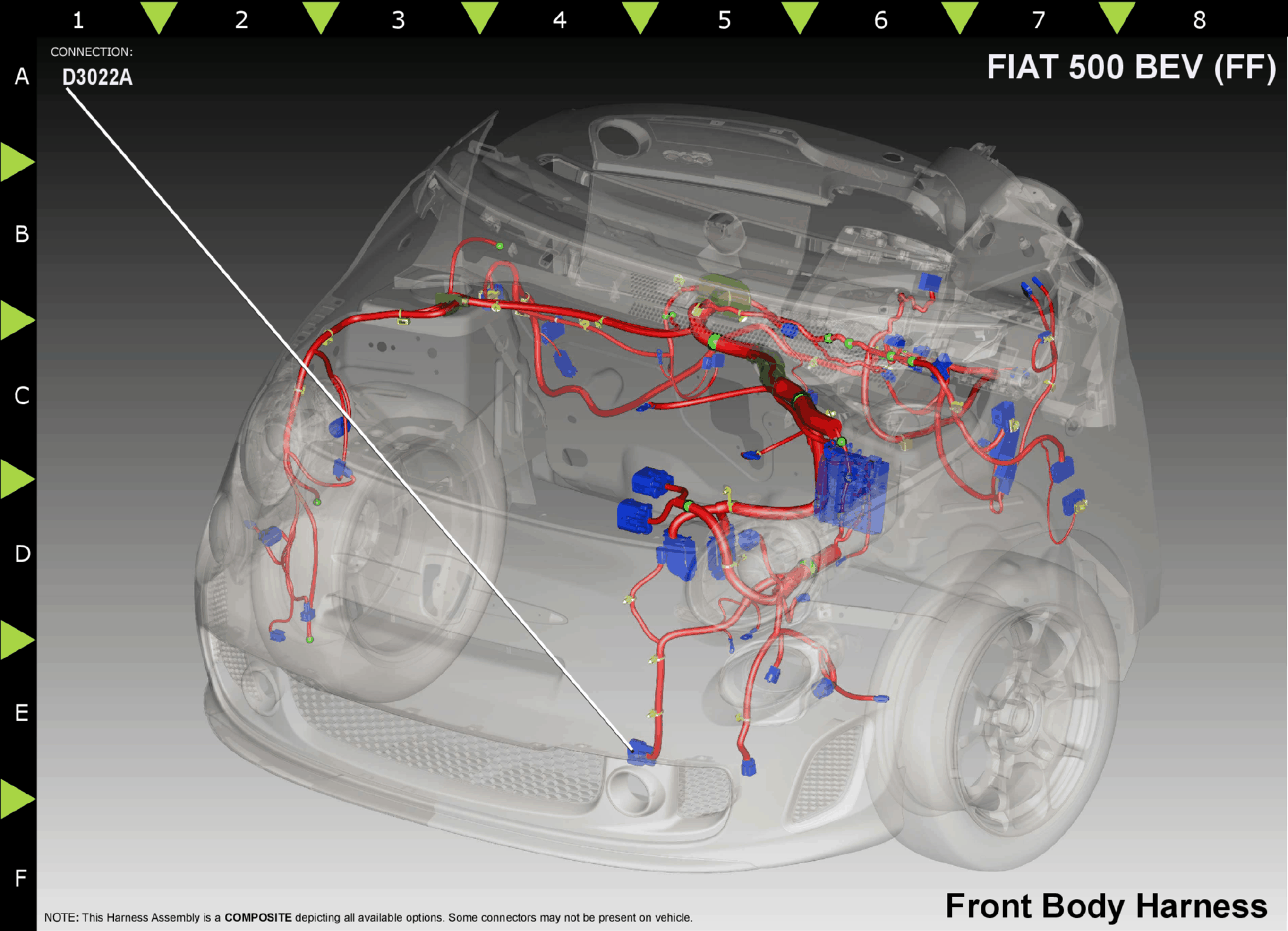

Fig 2: Fan Module-Radiator Cooling C1 Component Location (BEV)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N23

LOW SPEED RAD FAN CONTROL

N/A

F940

RD/LG

FUSED IGNITION RUN/START

N/A

N27

DB/OR

FAN SPEED SENSOR SIGNAL

N/A

Z823

GROUND

N/A

⁽⁾	Pins not listed are not used for this connector
