Module, Electronic Shifter (ESM): Removal: Removal

WARNING:

On vehicles equipped with the high voltage system, disconnecting the 12-volt battery negative cable alone will not power down the 12-volt system. You must perform the 12-volt Power Down procedure before proceeding. Failure to follow these instructions may result in possible serious or fatal injury. Refer to STANDARD PROCEDURE .

Disconnect the negative 12-volt battery cable. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .

Fig 1: Gear Shifter Switch Bezel
Courtesy of CHRYSLER GROUP, LLC
Detach the electronic shifter switch bezel (1).

Fig 2: Three Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the three electrical connectors (1) below the electronic shifter switch bezel.

Fig 3: Rear Floor Console Nut
Courtesy of CHRYSLER GROUP, LLC
Remove the floor console rear cup holder insert, and remove the rear floor console nut (1).

Fig 4: Floor Console Vent Panel Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the two floor console vent panel screws (1), and remove the two floor console vent panels.

Fig 5: Front Floor Console Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the two front floor console screws (1).

Fig 6: Front Floor Console Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the front floor console cup holder insert, and remove the two front floor console nuts (1).
Disconnect the floor console 12-volt outlet electrical connector, and remove the floor console.

Fig 7: Center Console Screws & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the two center console screws (1), and the two center console bolts (2).

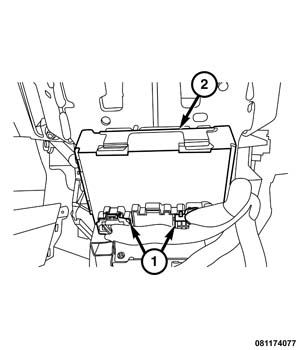

Fig 8: Electronic Shifter Module (ESM) & Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the two electronic shifter module (ESM) electrical connectors (1).
Remove the ESM (2).
