Tire Pressure Sensor: Notes
IMPORTANT:
This vehicle uses the 433 MHz TPM sensor. Although 315 MHz and 433 MHz sensors are identical in size and shape, they are not interchangeable. Always make sure the correct sensor is being used. A RKE-TPM Analyzer can be used to determine the sensor's frequency without having to dismount the tire.
CAUTION:
To prevent moisture and contamination from entering the valve stem, the cap used on this valve stem contains an "O" ring seal. Retain original valve stem cap for reuse. A regular valve stem cap cannot be used as a substitute. After inspecting or adjusting the tire pressure, always reinstall the valve stem cap. This will prevent moisture and dirt entry into the valve stem, which could damage the wheel rim sensor.
CAUTION:

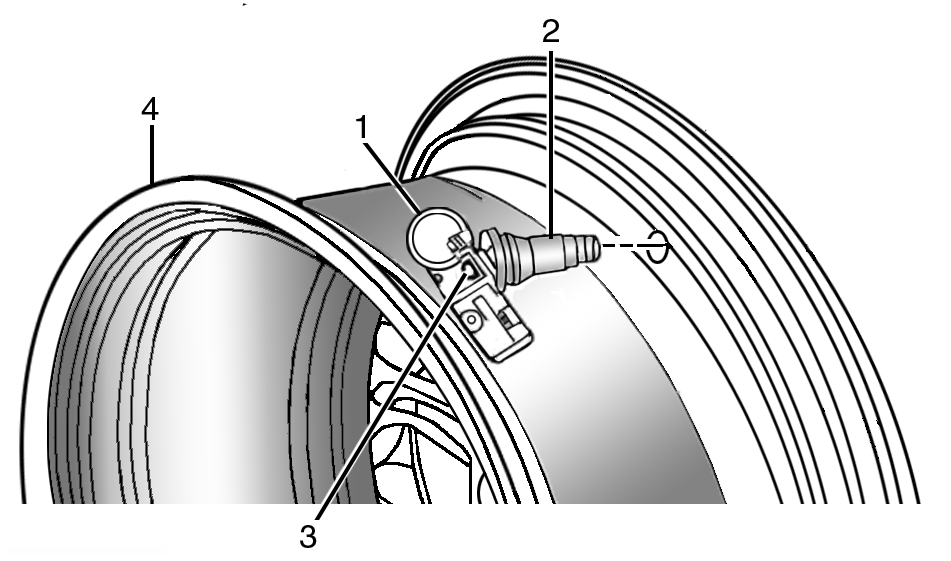

Any time a sensor is to be reinstalled in a wheel, a new valve stem assembly must be installed to ensure air tight sealing. See Figure.
