Module-Transmission Control C1 (Manual)

Harness-Family: Body_Front

Color: BLACK

Gender: FEMALE

Part Number: AGV29957

Part Description: Not Available

Connector No: D3855A

Option: MANUAL

Repair Kit Part Number: Not Available

Cavity Count: ~~

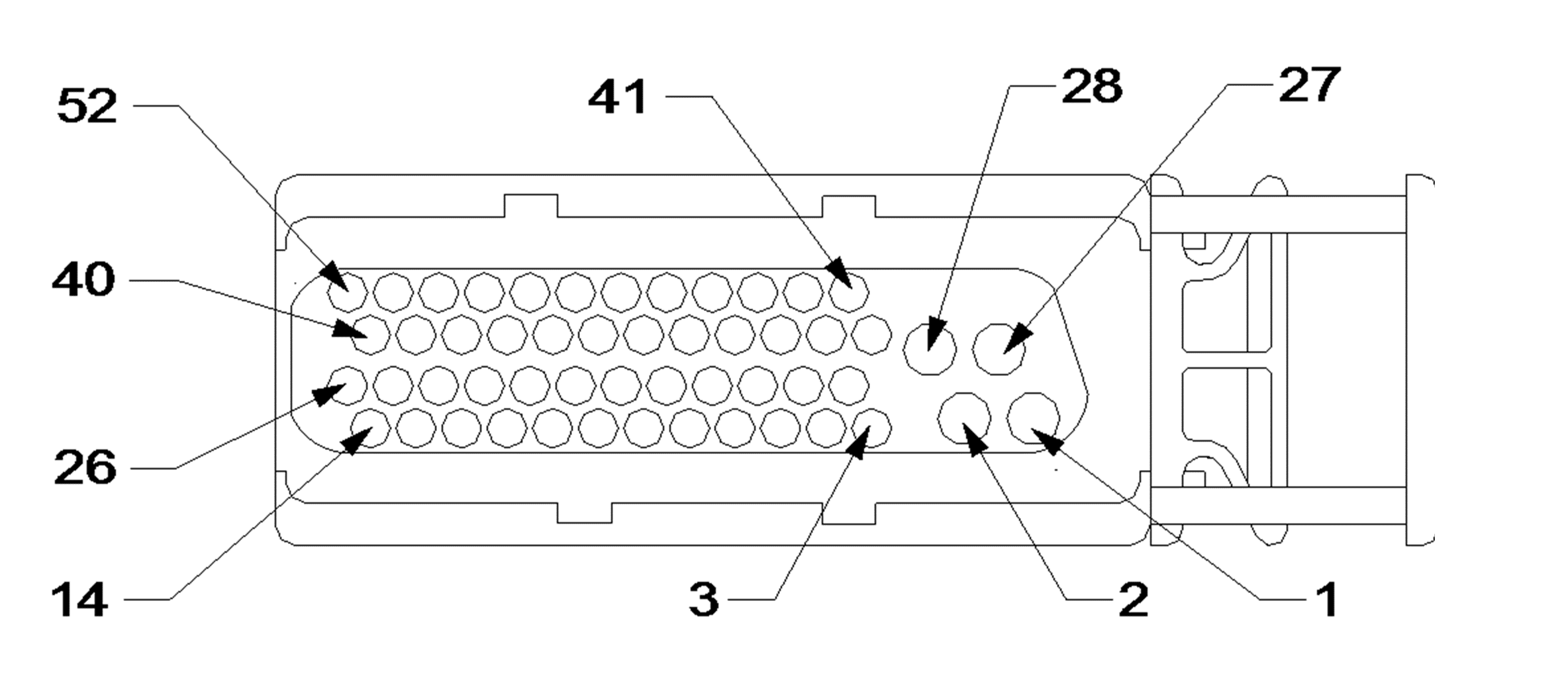

Fig 1: Module-Transmission Control C1 Connector End View (Manual)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z932

GROUND

N/A

Z932

GROUND

N/A

D64

CAN C (-)

N/A

D65

CAN C (+)

N/A

T401

WT/GY

TRANSMISSION NEUTRAL SIGNAL

N/A

A107

RD/GY

FUSED B(+)

N/A

F202

OR/BK

IGNITION RUN/START CONTROL OUTPUT

N/A

T812

BR/BK

SHIFTER SOL CONTROL

N/A

T107

WT/YL

TRANSMISSION PUMP RELAY CONTROL

N/A

F593

WT/DG

SHAFT 2 SOL CONTROL

N/A

D64

CAN C (-)

N/A

T13

OR/WT

SPEED SENSOR GROUND

N/A

T42

BR/WT

TRS T42 SIGNAL

N/A

T388

DB/RD

CLUTCH PRESSURE SIGNAL

N/A

Z910

BR/GY

GROUND

N/A

T118

YL/BK

LP VFS CONTROL

N/A

F592

BR/YL

SHAFT 1 SOL CONTROL

N/A

D65

CAN C (+)

N/A

T130

OR/BK

OUTPUT SPEED SENSOR GROUND

N/A

T41

WT/BK

TRS T41 SIGNAL

N/A

T12

DG/GY

CLUTCH POSITION SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
