Module-Steering Control C4

Harness-Family: Steering_Wheel

Color: ~~

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D3816D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

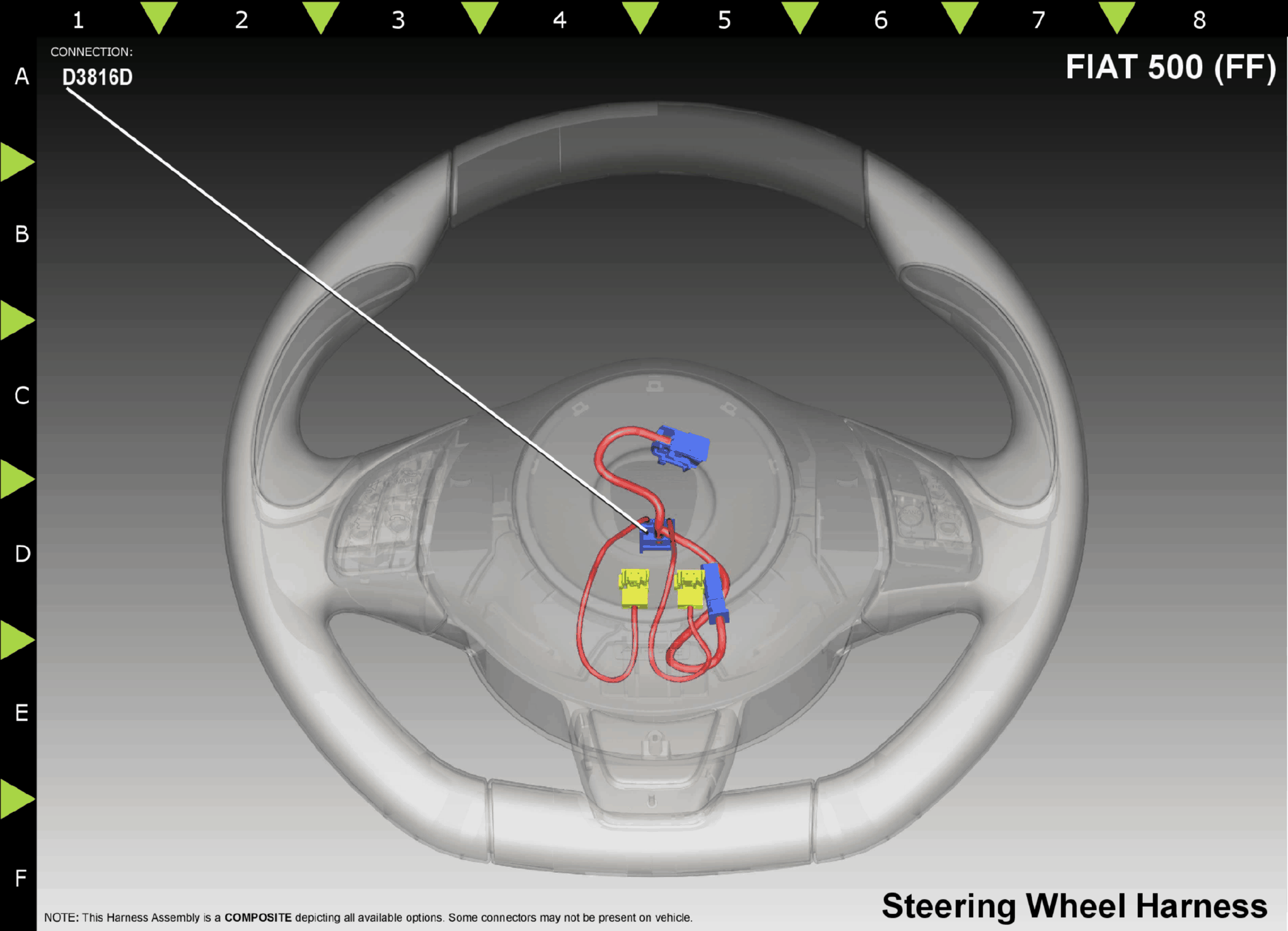

Fig 1: Module-Steering Control C4 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X20

BR/WT

RADIO CONTROL MUX

N/A

A935

FUSED B(+)

N/A

Z10

GROUND

N/A

X21

FUSED HORN CONTROL OUTPUT

N/A

X920

WT/BR

RADIO CONTROL MUX RETURN

N/A

V71

OR/WT

S/C SIGNAL 1

N/A

V72

LG/RD

S/C SIGNAL 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
