Module-Occupant Restraint Controller C2

Harness-Family: Body_Rear

Color:

Gender: MALE

Part Number: 13823026

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

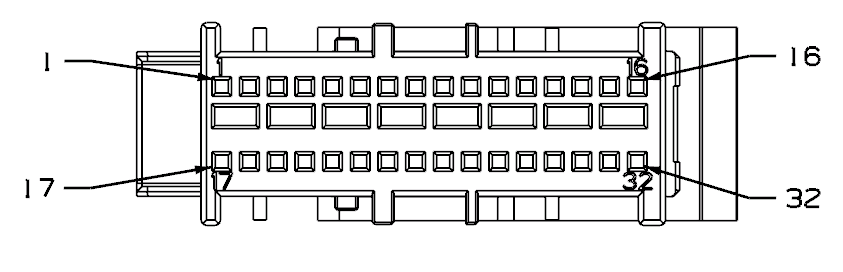

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

LEFT CURTAIN SQUIB 1 LINE 1

N/A

LEFT CURTAIN SQUIB 1 LINE 2

N/A

RIGHT CURTAIN SQUIB 1 LINE 2

N/A

RIGHT CURTAIN SQUIB 1 LINE 1

N/A

DG/BK

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

DG/YL

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

LEFT SEAT THORAX SQUIB 1 LINE 2

N/A

OR/BK

LEFT SEAT THORAX SQUIB 1 LINE 1

N/A

R77

GY/BK

DRIVER LOAD LIMITER LINE 1

N/A

R75

DRIVER LOAD LIMITER LINE 2

N/A

R76

PASSENGER LOAD LIMITER LINE 2

N/A

R78

YL/BK

PASSENGER LOAD LIMITER LINE 1

N/A

R280

WT/BK

PASENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R279

WT/DB

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R277

DB/DG

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R278

DB/BK

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R506

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R504

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R160

GY/DB

RIGHT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

R261

RD/WT

DRIVER SEAT POSITION SENSOR DATA

N/A

R57

WT/RD

DRIVER SEAT BELT BUCKLE SWITCH SENSE

N/A

R140

DB/WT

RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL

EARLY

R283

DG/WT

PASSENGER SEAT OCCUPANT DETECTION SIGNAL

N/A

R130

DB/YL

LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

R150

DB/BR

LEFT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

R262

RD/WT

PASSENGER SEAT POSITION SENSOR DATA

N/A

R58

WT/YL

PASSENGER SEAT BELT SWITCH SENSE

N/A

Z927

WT/BK

GROUND

N/A

R18

GY/WT

RIGHT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R20

GY/YL

RIGHT SIDE IMPACT SENSOR 2 GROUND

N/A

R19

GY/BR

LEFT SIDE IMPACT SENSOR 2 GROUND

N/A

R17

GY/RD

LEFT SIDE IMPACT SENSOR 2 SIGNAL

EARLY

⁽¹⁾	Pins not listed are not used for this connector
