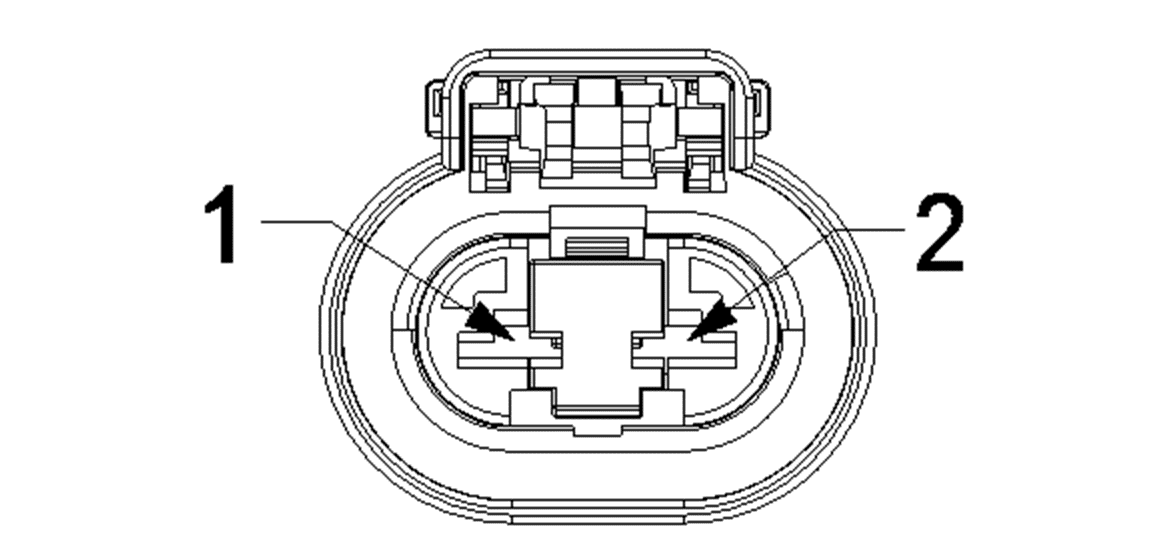

Fan Module-Radiator Cooling C2
Harness-Family: Body_Front
Color: BLACK
Gender: FEMALE
Part Number: AHY35400
Part Description: Not Available
Connector No: D3022B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | N24 | BR | 8 | RADIATOR FAN RELAY OUTPUT | N/A | ||
| 2 | Z930 | BK | 8 | GROUND | N/A | ||
|
|||||||
