P0BEE-00-Drive Motor A Inverter Phase W Current Sensor Circuit Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

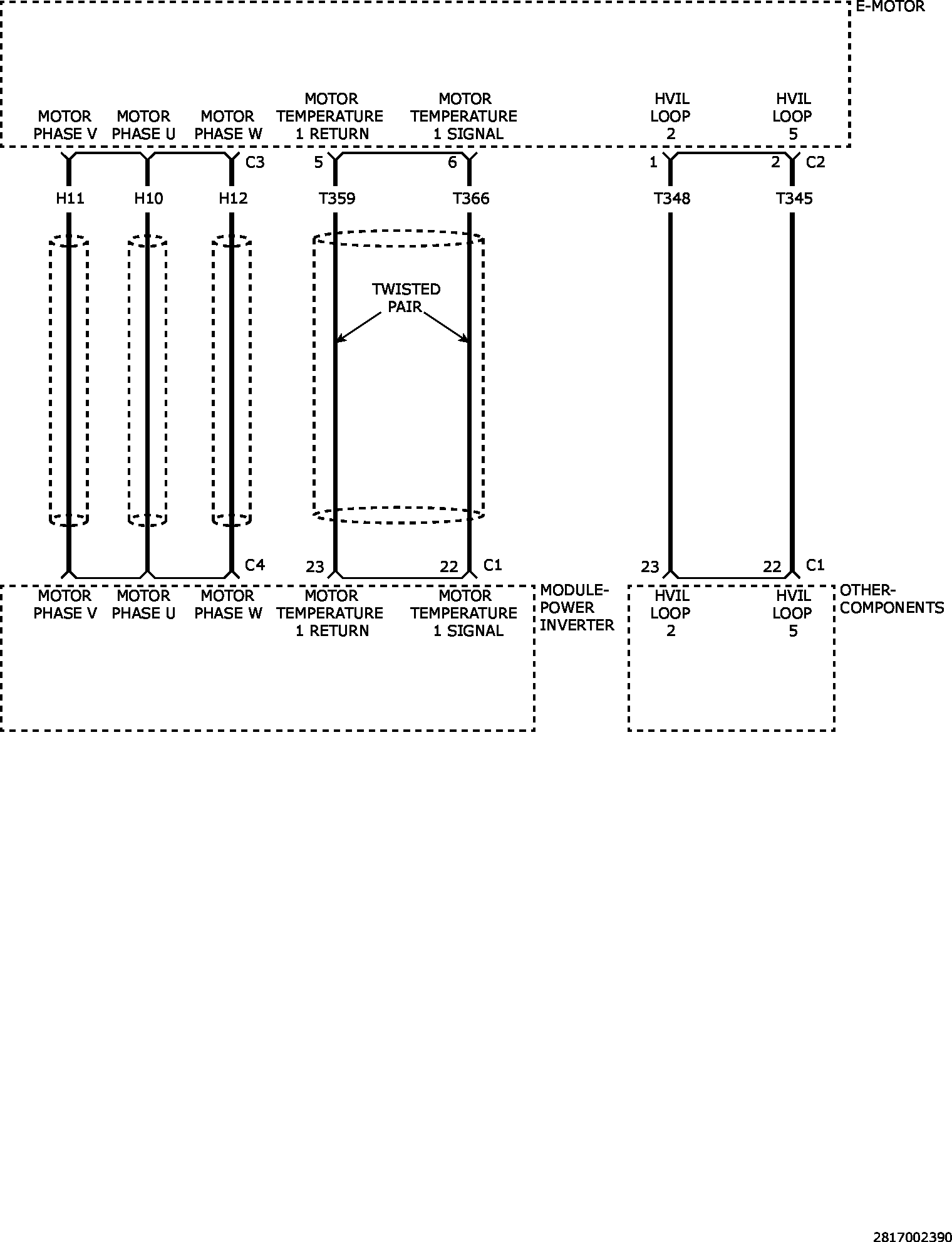

Fig 1: E-Motor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
