C510 Manual Transaxle (Service Information): Installation: Installation

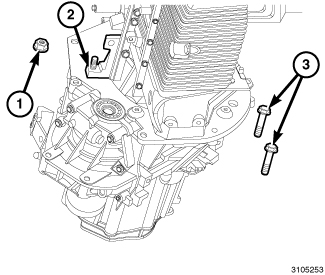

Fig 1: Transmission Bell Housing Bolts, Nut & Stud

Courtesy of CHRYSLER GROUP, LLC

1. Install the transaxle to vehicle using a suitable transmission jack.
2. Pull the engine forward to gain clearance for the stud to pass through the engine block.
3. Install the nut (1), tighten to 60 N.m (44ft. lbs.).
4. Install the remaining transmission bell housing bolts (3) tighten to 40 N.m (30 ft. lbs.).
   Fig 2: Rear Transmission Mount Bracket Bolt

   Courtesy of CHRYSLER GROUP, LLC
5. Install the rear transmission mount bracket bolt, nut and bracket to transmission tighten the bolt to 80 N.m (59 ft. lbs.).

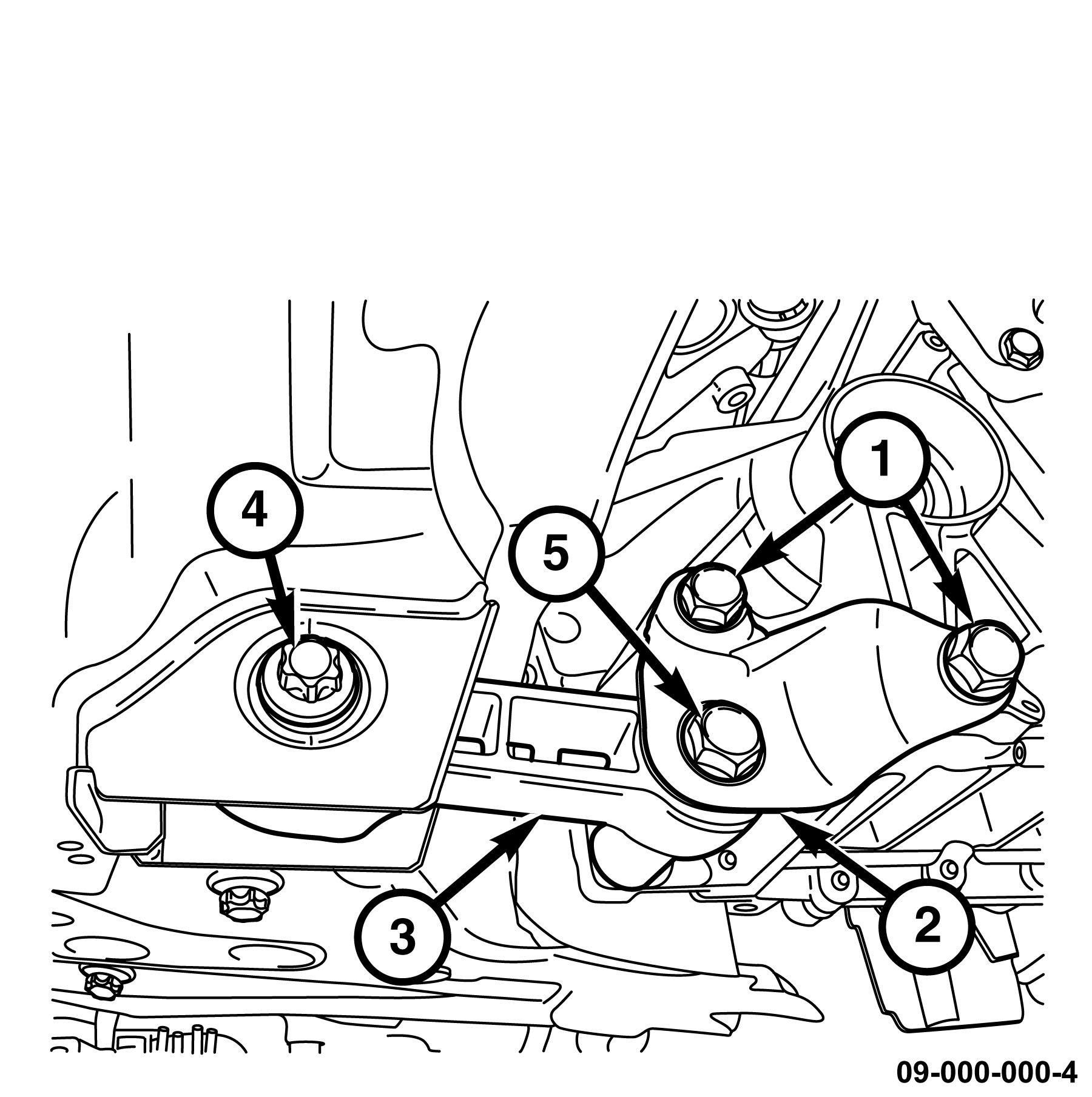

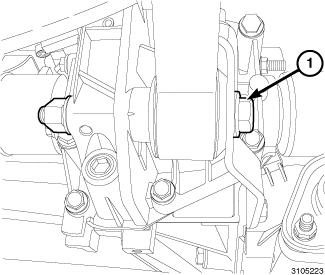

   Fig 3: Rear Engine Mount Isolator & Fasteners

   Courtesy of CHRYSLER GROUP, LLC
6. Install the rear transmission mount bolt (1) nut and mount (2) to the frame tighten the bolt to 130 N.m (96 ft. lbs.).

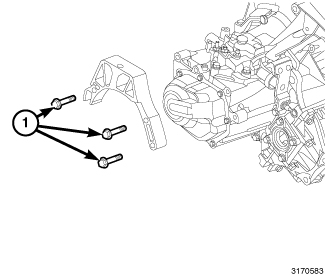

   Fig 4: Left Side Mount Bolts

   Courtesy of CHRYSLER GROUP, LLC
7. Install the left side mount. Tighten the bolts to 50 N.m (37 ft. lbs.).
8. Install exhaust extension pipe.

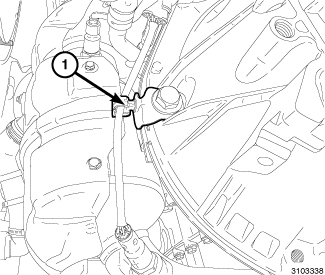

   Fig 5: Oxygen Sensor Wire Loom/Clip

   Courtesy of CHRYSLER GROUP, LLC
9. Install the oxygen sensor wire in the loom/clip (1).
10. Connect the oxygen sensor electrical connector.
11. Install the starter. Refer to STARTER, INSTALLATION .
12. Install the halfshafts. Refer to INSTALLATION .

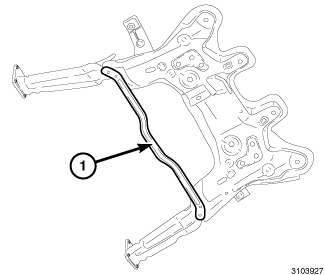

    Fig 6: Cross Car Cradle Brace

    Courtesy of CHRYSLER GROUP, LLC
13. Install the cross car cradle brace (1). Tighten the bolts to 90 N.m (66 ft. lbs.)
14. Install the belly pan if equipped. Refer to BELLY PAN, INSTALLATION .
15. Lower the vehicle.

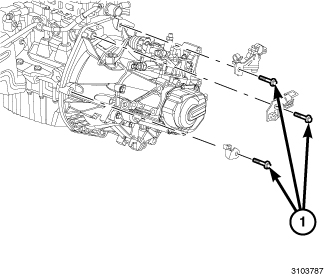

    Fig 7: Upper Bell Housing Bolts

    Courtesy of CHRYSLER GROUP, LLC
16. Install upper bell housing bolts and tighten to 60 N.m (44ft. lbs.

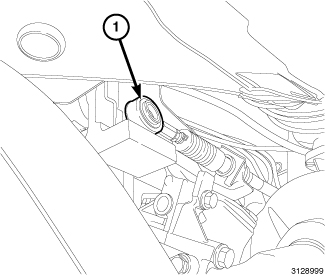

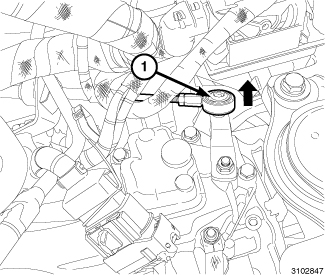

    Fig 8: Shift Cable

    Courtesy of CHRYSLER GROUP, LLC
17. Connect selector cable (1) to the lever.

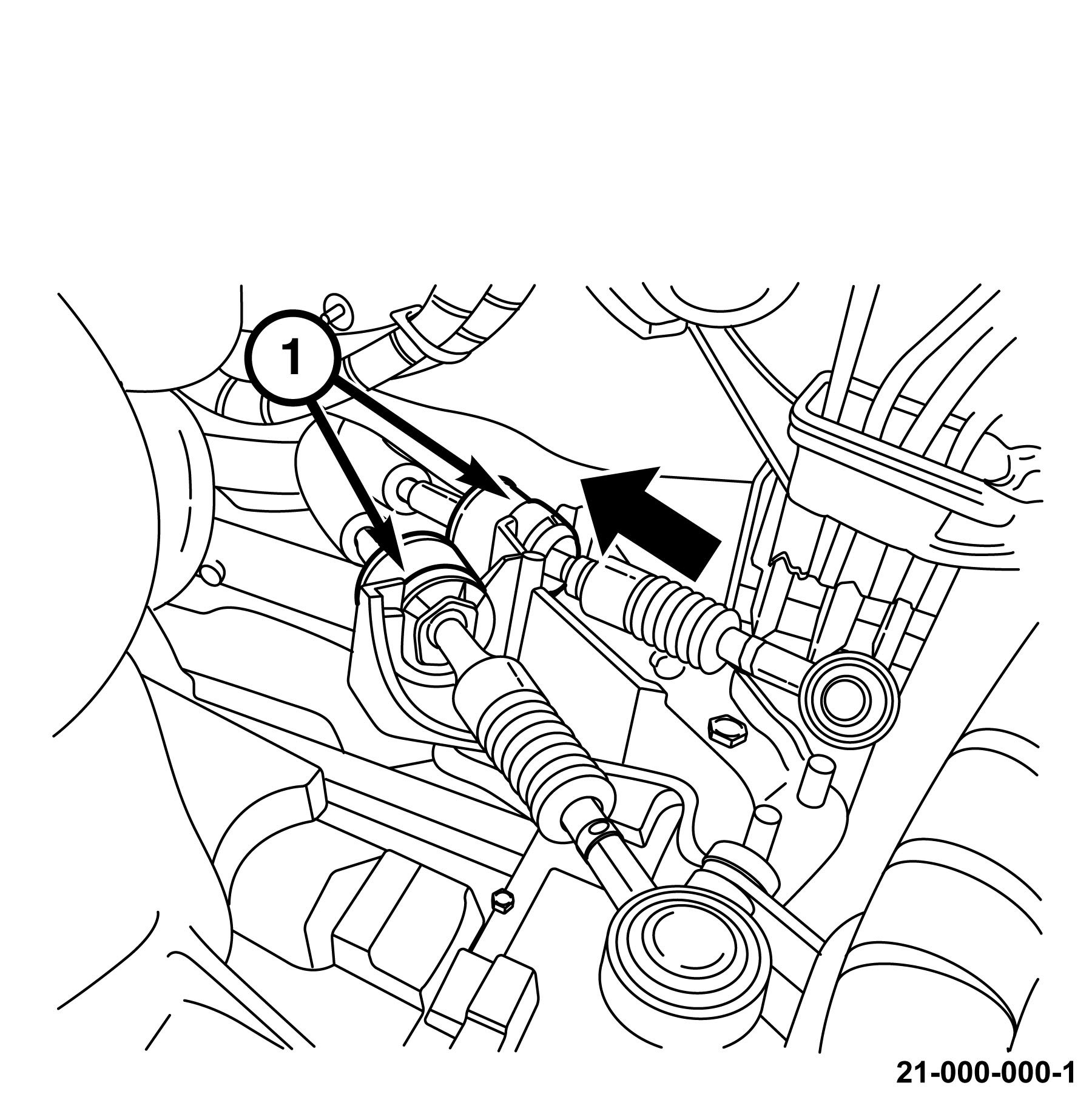

    Fig 9: Collars

    Courtesy of CHRYSLER GROUP, LLC
18. Connect the cable to the mounting bracket (1).

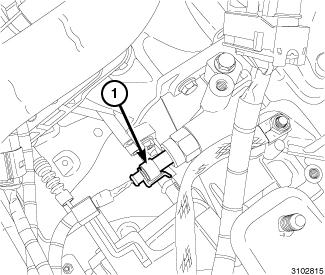

    Fig 10: Shift Selector Cable

    Courtesy of CHRYSLER GROUP, LLC
19. Connect the shift cable (1) to the lever.

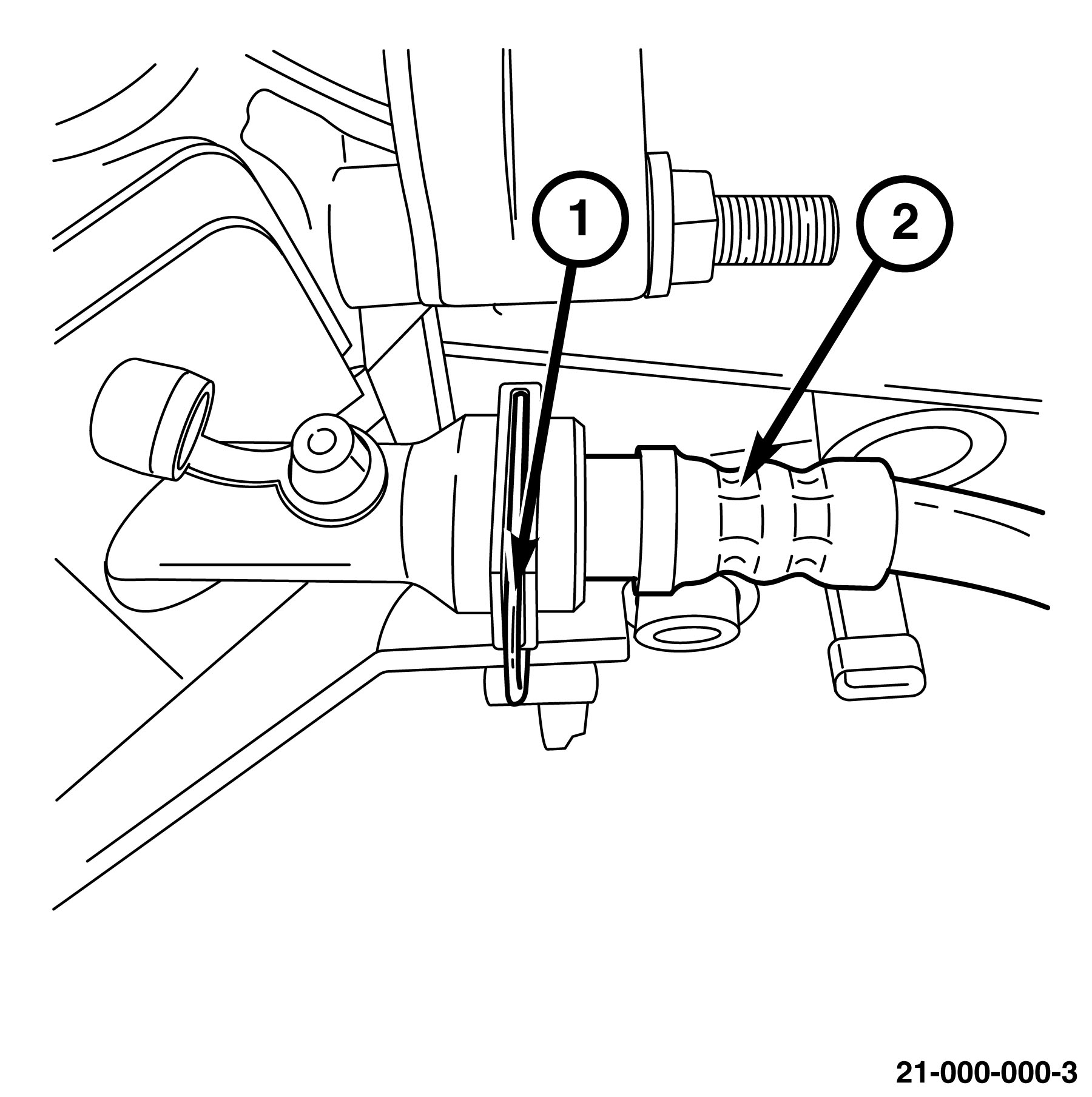

    Fig 11: Clutch Slave Cylinder Hose & Retaining Clip

    Courtesy of CHRYSLER GROUP, LLC
20. Install the concentric slave cylinder hose (2)
    Fig 12: Reverse Lamp Switch Connector

    Courtesy of CHRYSLER GROUP, LLC
21. Connect reverse lamp switch connector (2).
22. Install the ground strap at the transmission.
23. Install the charged air cooler outlet hose on the throttle body.
24. Install the cooling system module.
25. Install both head lamp assemblies. Refer to UNIT, HEADLAMP, INSTALLATION .
    Fig 13: Left Vertical Brace Bolts, Brake Hose Connector, Brake Hose & Banjo Bolt

    Courtesy of CHRYSLER GROUP, LLC
26. Install both vertical brace with two bolts (1) tightened to 45 N.m (33 ft. lbs.).
27. Install the Front Fascia. Refer to FASCIA, FRONT, INSTALLATION .
28. Install air cleaner assembly. Refer to AIR CLEANER, INSTALLATION for 1.4L 16V Turbo; AIR CLEANER, INSTALLATION
29. Install the battery tray. Refer to TRAY, BATTERY, INSTALLATION .
30. Fill engine coolant system. Refer to STANDARD PROCEDURE .
31. Recharge the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
32. Check the transmission fluid levels and correct as needed. Refer to STANDARD PROCEDURE  .
33. Road test vehicle and inspect for leaks.
