Switch, Clutch Starter Interlock: Installation: Installation

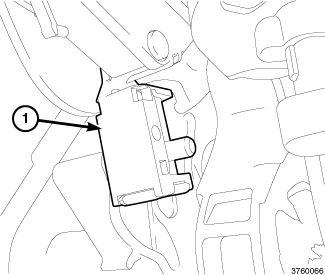

Fig 1: Locating Tab

Courtesy of CHRYSLER GROUP, LLC

Engage the locating tab (1) to the pedal assembly and install the switch.

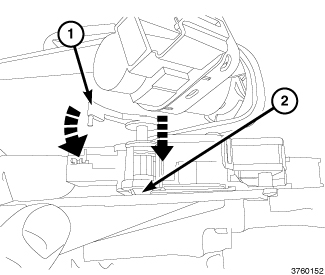

Fig 2: Rivet & Lever
Courtesy of CHRYSLER GROUP, LLC

NOTE:
If the either retaining feature on the switch will not securely hold the lever in place replace the switch.
Snap the rivet (2) in place by pushing down, lock the switch in place by rotating the lever (1) until it snaps in place.

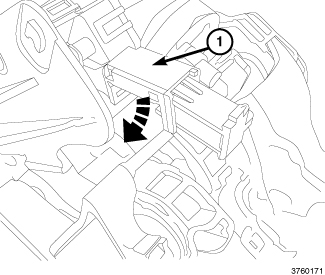

Fig 3: Lever
Courtesy of CHRYSLER GROUP, LLC
Swing the external lever into place making sure that the stud on the pedal is captured.

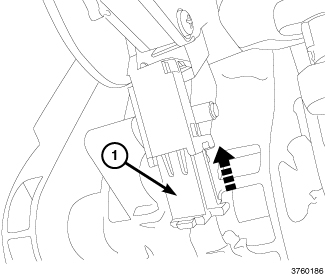

Fig 4: Lock
Courtesy of CHRYSLER GROUP, LLC
Lock the lever in place by pushing the lock (1) upward.

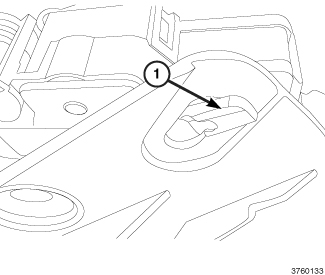

Fig 5: External Sensor Lever
Courtesy of CHRYSLER GROUP, LLC
With the switch fully locked in place, cycle the clutch pedal several times to verify proper installation.
Install the pedal assembly into the vehicle Refer to PEDAL AND PAD, CLUTCH, INSTALLATION .
.
