Module, Powertrain Control (EAJ): Installation: Installation

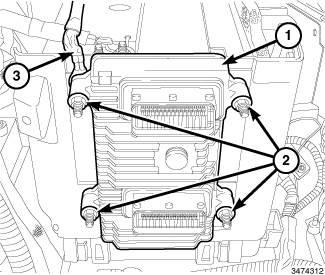

Fig 1: Powertrain Control Module (PCM)

Courtesy of CHRYSLER GROUP, LLC

Install the Powertrain Control Module (PCM) (1) to the battery tray with four nuts (2) and ground strap (3). Tighten nuts (2) to 5 N.m (44 in. lbs.).

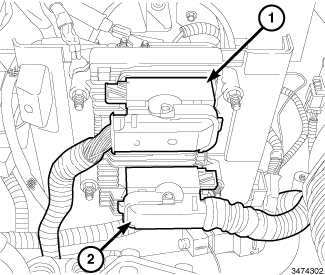

Fig 2: Powertrain Control Module (PCM) Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect the Powertrain Control Module (PCM) electrical connectors (1 and 2).
Install the battery (Refer to INSTALLATION ).
NOTE:
If the original Vehicle Identification Number (VIN) and original vehicle mileage is not programed into the PCM, a Diagnostic Trouble Code (DTC) may be set.
If installing a new PCM, use a diagnostic scan tool to reprogram the new PCM with the vehicles original VIN and mileage.
