Cable, Shift: Adjustments: Adjustments: Notes

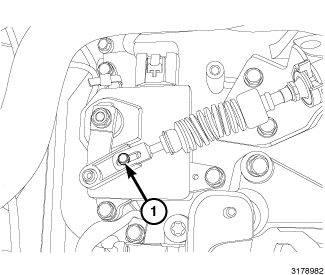

Fig 1: Cable Adjustment Screw

Courtesy of CHRYSLER GROUP, LLC

1. Park the vehicle on level ground and set the parking brake.
2. Place the gearshift lever in gated park (P) and remove ignition key.
3. Loosen the cable adjustment screw at the transaxle manual valve lever.
4. Pull the gearshift lever fully forward to the park detent position.
5. Release the park brake, then rock the vehicle to assure it is in park. Reset the park brake.
6. Tighten the cable adjustment screw to 8 N.m (71 in. lbs.). Gearshift cable should now be properly adjusted.
7. Verify adjustment by using the verification procedure.
