Throttle Body: Installation: Installation

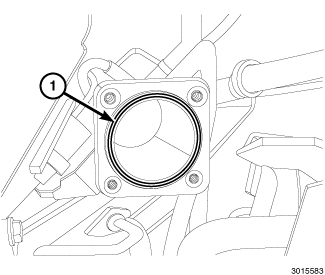

Fig 1: Throttle Body-To-Intake Manifold Seal

Courtesy of CHRYSLER GROUP, LLC

Check the condition of the throttle body-to-intake manifold seal (1). The seal can be reused if not damaged.
Clean the mating surfaces of the throttle body and intake manifold.

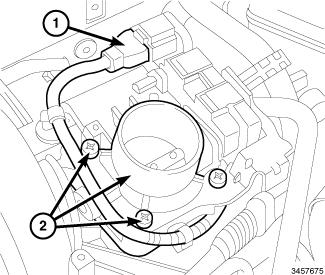

Fig 2: Throttle Body Mounting Bolts & Connector
Courtesy of CHRYSLER GROUP, LLC
Install the throttle body and tighten the mounting bolts (2) in a criss-cross pattern sequence to 9 N.m (80 in. lbs.).
Connect the electrical connector (1) to the Electronic Throttle Control (ETC) and secure the ETC harness to the clip on the throttle body.
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION .
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
