Clutch System: Flywheel: Removal: Removal

WARNING:

Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.

Remove transmission. Refer to REMOVAL REMOVAL .

Fig 1: Flywheel Locking Tool
Courtesy of CHRYSLER GROUP, LLC
Install Flywheel Locking Tool (special tool #10272, Tool, Flywheel Locking).

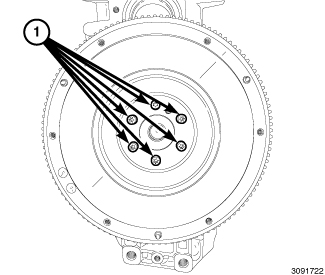

Fig 2: Flywheel-To-Crankshaft Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove clutch pressure plate and disc. Refer to DISC, CLUTCH, REMOVAL .
Remove the flywheel-to-crankshaft bolts (1) and remove the flywheel assembly.
