Bottle, Pressurized Coolant: Installation: Installation

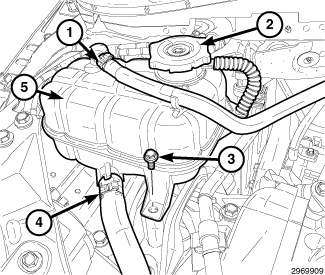

Fig 1: Return Hose, Lower Supply Hose, Mounting Screw & Coolant Recovery Bottle

Courtesy of CHRYSLER GROUP, LLC

1. Position the coolant bottle into the mounts.
2. Install the mounting screw (3). Tighten to 8 N.m (70 in. lbs.).
3. Install the lower supply hose (4).
4. Install the return hose (1).
5. Fill the cooling system. Refer to STANDARD PROCEDURE .
