Steering Column: Installation

To install, reverse removal procedures.

1. Insert column through opening in instrument panel. Fit worm shaft to steering column and lock with clamp. Replace column support bracket to steering column and connect with attaching screws (loosely).
2. Replace steering wheel temporarily and turn from side-to-side 2 or 3 times. Attach column switch assembly. Tighten column bracket bolts. Tighten steering wheel nut and connect switch wiring. Replace remaining components in reverse of removal procedure.

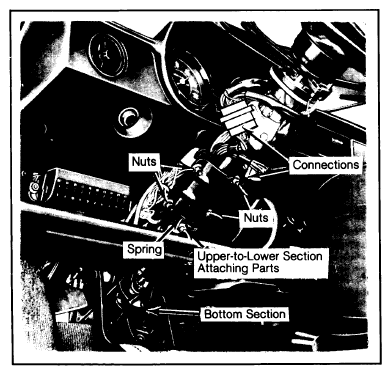

   Fig 1: Installed View Of X 1/9 Steering Column

   Courtesy of NOT AVAILABLE

   As viewed from under instrument panel.

Fig 2: Spider 2000 Flexible Coupling Connecting Upper And Lower Portions Of Steering Shaft

Courtesy of NOT AVAILABLE
