Engine Compartment

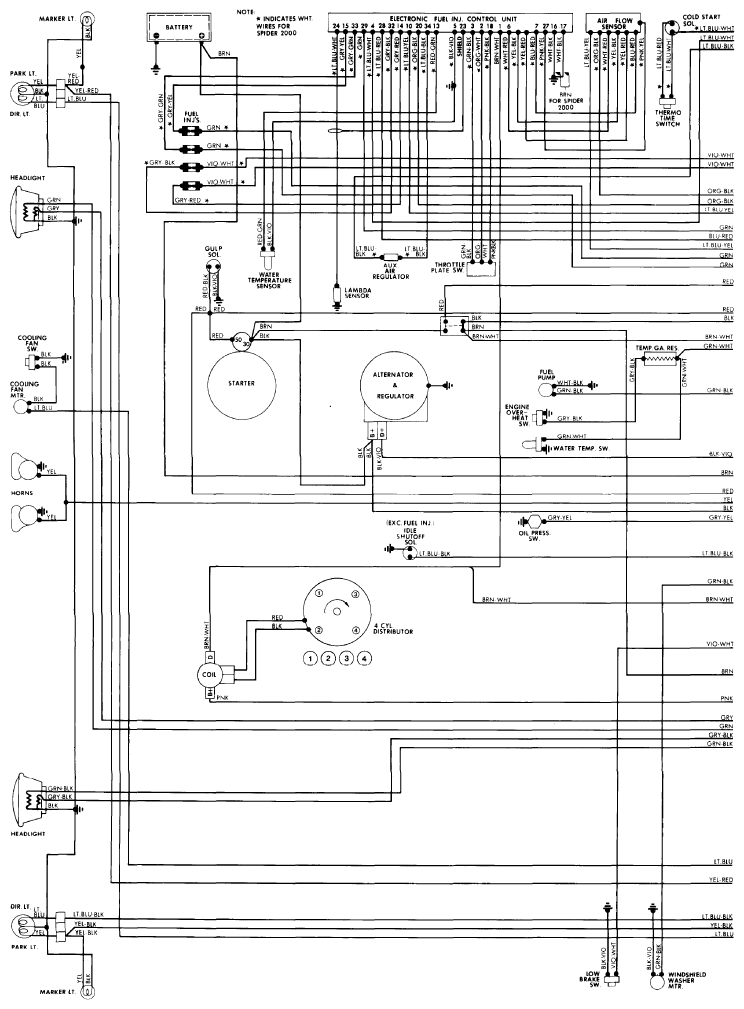

Fig 1: Wiring Diagram - Fiat SPIDER 2000 (1 of 4)

G09304428

Courtesy of NOT AVAILABLE
