Wiper Switch: Installation
To install, reverse removal procedure.

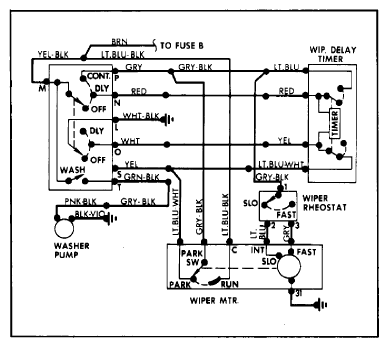

Fig 1: Spider 2000 Wiper Wiring Diagram
Courtesy of NOT AVAILABLE

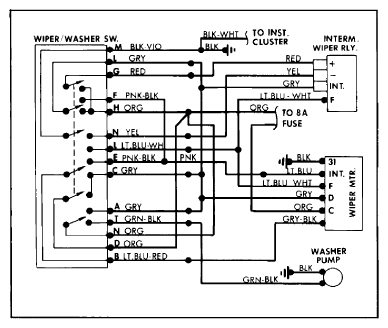

Fig 2: X1/9 Wiper Wiring Diagram
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
