Steering Column: Installation

To install, reverse removal procedure.

1. Insert column through opening in instrument panel. Fit worm shaft to steering column and lock with clamp. Replace column support bracket to steering column and connect with attaching screws (loosely).
2. Replace steering wheel temporarily and turn from side to side 2 or 3 times. Attach column switch assembly, then tighten column bracket bolts. Tighten steering wheel nut and connect switch wiring. Replace remaining components in reverse of removal procedure.

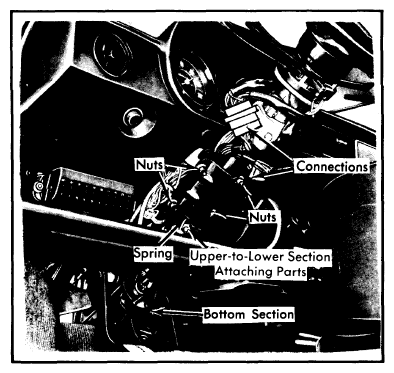

   Fig 1: Installed View Of Typical Steering Column As Viewed From Under Instrument Panel (Exc. Spider 2000)

   Courtesy of NOT AVAILABLE
   Fig 2: Detail Of Flexible Coupling Connecting Upper And Lower Portions Of Steering Shaft (Spider 2000)

   Courtesy of NOT AVAILABLE
