Wiper Switch: Installation

To install, reverse removal procedure.

Fig 1: Brava Wiper Wiring Diagram

G09323015

Courtesy of NOT AVAILABLE

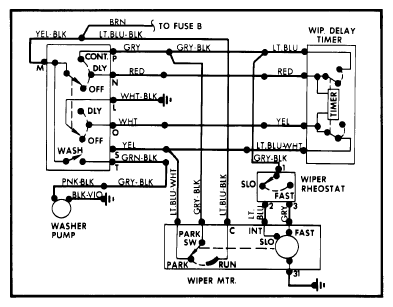

Fig 2: Spider 2000 Wiper Wiring Diagram

G09323016

Courtesy of NOT AVAILABLE

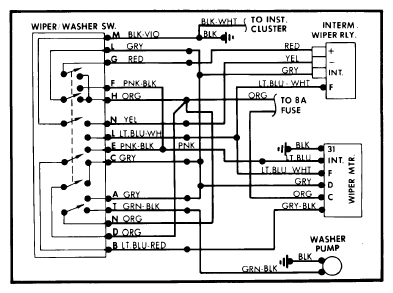

Fig 3: X1/9 Wiper Wiring Diagram

G09323017

Courtesy of NOT AVAILABLE

Fig 4: Strada Front Wiper Wiring Diagram

G09323018

Courtesy of NOT AVAILABLE

Fig 5: Strada Rear Wiper Wiring Diagram

G09323019

Courtesy of NOT AVAILABLE
