Evaporative Emissions System: Maintenance

Check all components for leakage every 15, 000 miles and replace as required. Every 25, 000 miles, replace activated carbon trap.

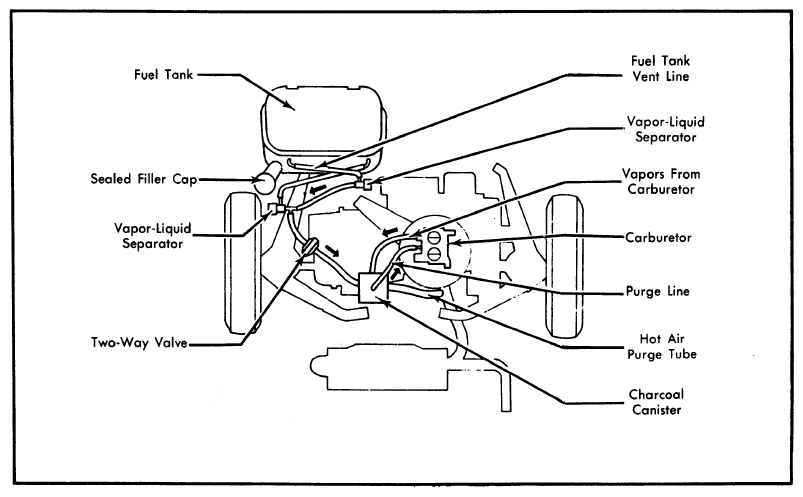

Fig 1: Fiat Fuel Evaporation System (Carbureted Brava, Spicier 2000 & Strada)

Courtesy of NOT AVAILABLE

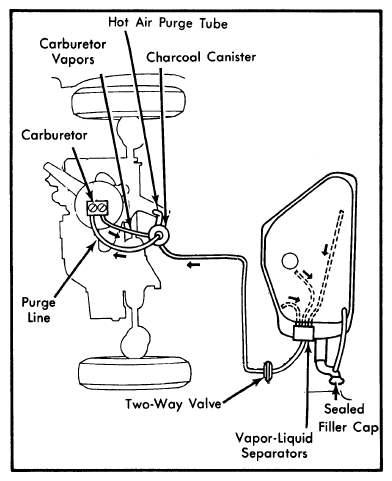

Fig 2: Fiat Fuel Evaporation System (Carbureted X1/9)

Courtesy of NOT AVAILABLE

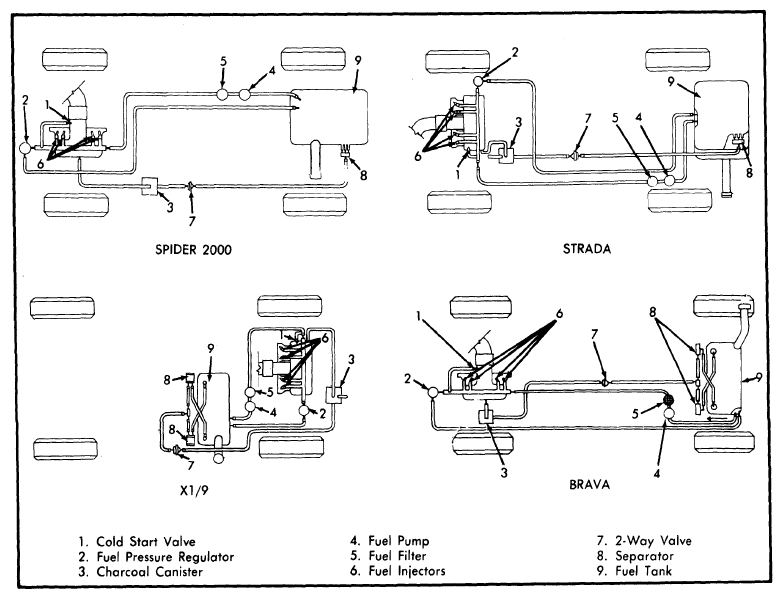

Fig 3: Fiat Fuel Evaporation Systems (Fuel Injected Models)

Courtesy of NOT AVAILABLE
