Air Induction System: Maintenance

Every 15, 000 miles the following should be performed:

• Inspect the air injection pump for defects or damage.
• Inspect relief valve and check valve operation and connections.
• Check condition of lines and fittings and replace parts as necessary.

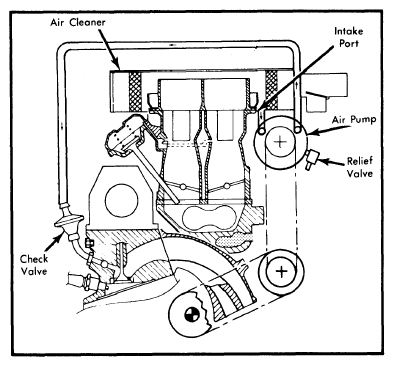

  Fig 1: Fiat Air Injection System (Strada and X1/9 Models)

  Courtesy of NOT AVAILABLE

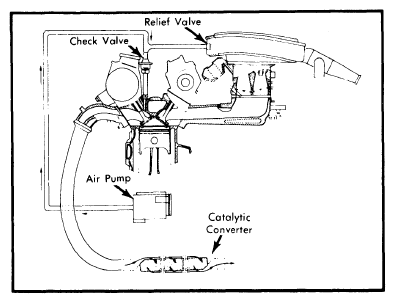

  Fig 2: Fiat Air Injection System (Brava and Spider 2000 Models)

  Courtesy of NOT AVAILABLE
