Crankcase Ventilation Systems: Maintenance

Clean and inspect crankcase ventilation system every 15, 000 miles. Flame trap should be washed in solvent to avoid clogging by vapors.

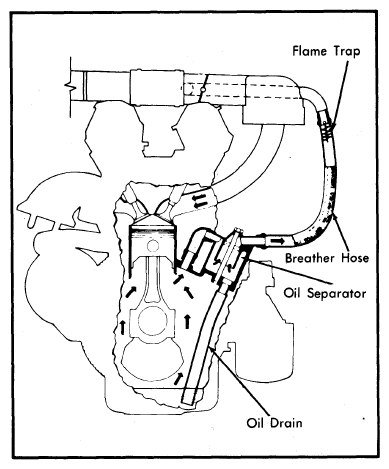

Fig 1: Brava and Spider 2000 Crankcase Ventilation (Carbureted Models)

Courtesy of NOT AVAILABLE

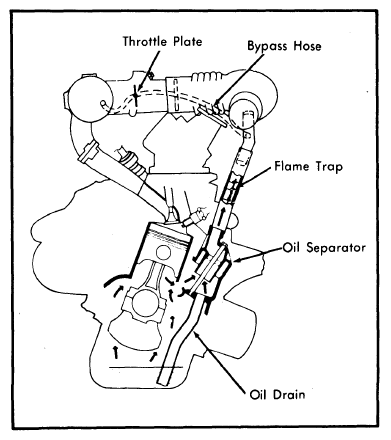

Fig 2: Brava and Spider 2000 Crankcase Ventilation (Fuel Injected Models)

Courtesy of NOT AVAILABLE

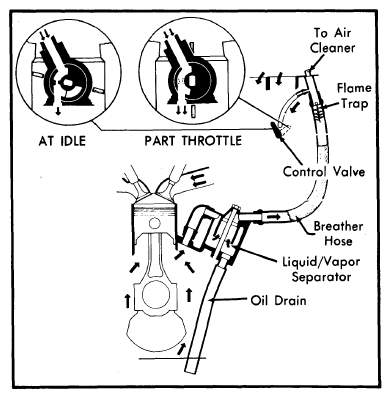

Fig 3: Strada and X1/9 Crankcase Ventilation (Fuel Injected Models)

Courtesy of NOT AVAILABLE
