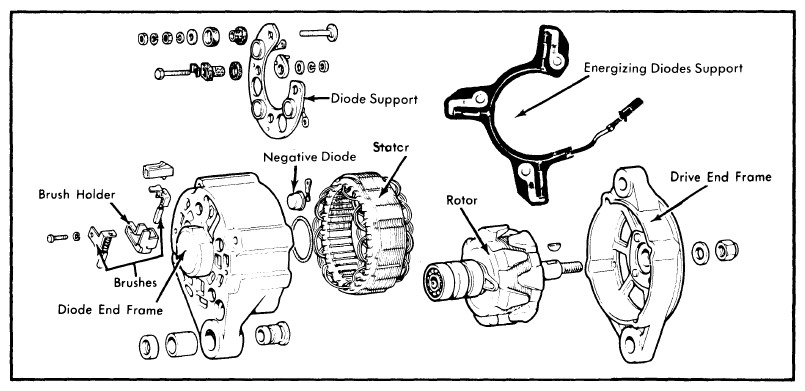

MARELLI Alternators: Overhaul: Reassembly
The alternator is reassembled by reversing the order of disassembly procedure.
SPECIFICATIONS
| Application | Test Data | |
|---|---|---|
| Max. Cut-In Speed (1) 12V, 77°F (20°C) | 1200 RPM | |
| Current Output @14V (7000 RPM) | ||
| 124/14V/53A | 57 amps. min. | |
| 124/14V/60A | 60 amps. min. | |
| Maximum Output Current (All Models) | 70 amps. | |
| Max. Continuous Alternator RPM | 13, 000 | |
| Alternator to Engine RPM Ratio | 2:1 | |
