Pedal Adjustment
- To obtain correct free play between release bearing and clutch assembly, correct pedal free play must be obtained. Before adjusting free play, make sure cable housing is not worn or distorted.

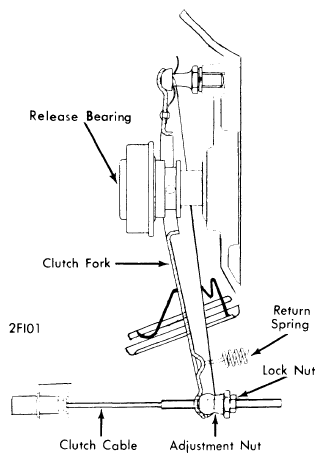

- To adjust pedal free play, adjust lock nut and adjustment nut on cable at clutch fork until 1" pedal free play is obtained.
TIGHTENING SPECIFICATIONS
| Application | Ft. Lbs. (mkg) |
|---|---|
| Flywheel-to-Crankshaft | 59 (8.1) |
| Clutch-to-Flywheel | 18 (2.5) |
| Transmission-to-Engine Bolts | 61 (8.4) |
