Using Voltmeter

  1. Ensure battery is fully charged. Turn ignition off. Connect Test Harness (MB991529) and voltmeter to Data Link Connector (DLC), located below driver's side of instrument panel. See Fig 1
  2. Turn ignition on. Turn speed control main switch on. Record all DTCs displayed on voltmeter. DTCs are displayed as a series of needle sweeps. As an example: Code 24 is a 3 second pause, two 1.5 second sweeps, a 2 second pause and four .5 second sweeps.
  3. Using all DTCs obtained, proceed to SELF-DIAGNOSTICS  . Once all repairs are made, ensure DTCs are cleared from speed control ECM. See CLEARING DIAGNOSTIC TROUBLE CODES  .
  4. If no DTCs are present, proceed to TROUBLE SYMPTOMS  under SELF-DIAGNOSTICS.

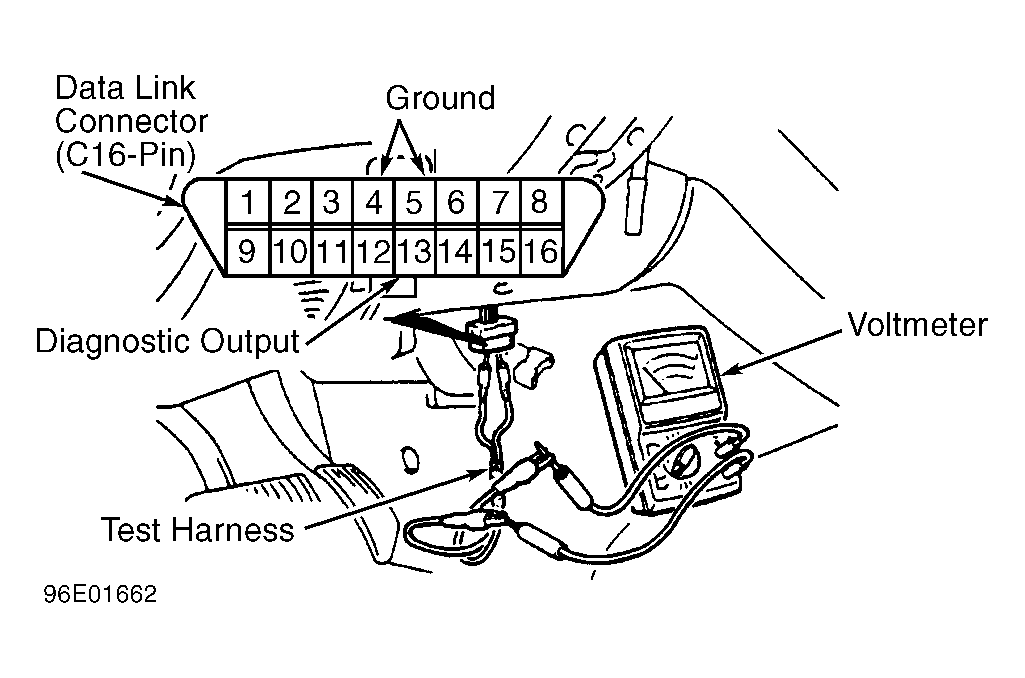

Fig 1: Retrieving Diagnostic Trouble Codes (DTC)
G96E01662Courtesy of CHRYSLER CORP.
