Hydraulic Control Unit (HCU): Installation

To install, reverse removal procedure. Install HCU brake lines. Bleed brake system. See BLEEDING BRAKE SYSTEM  . Ensure brakelines are installed in proper locations. See Fig 2 . Ensure HCU is operating properly.

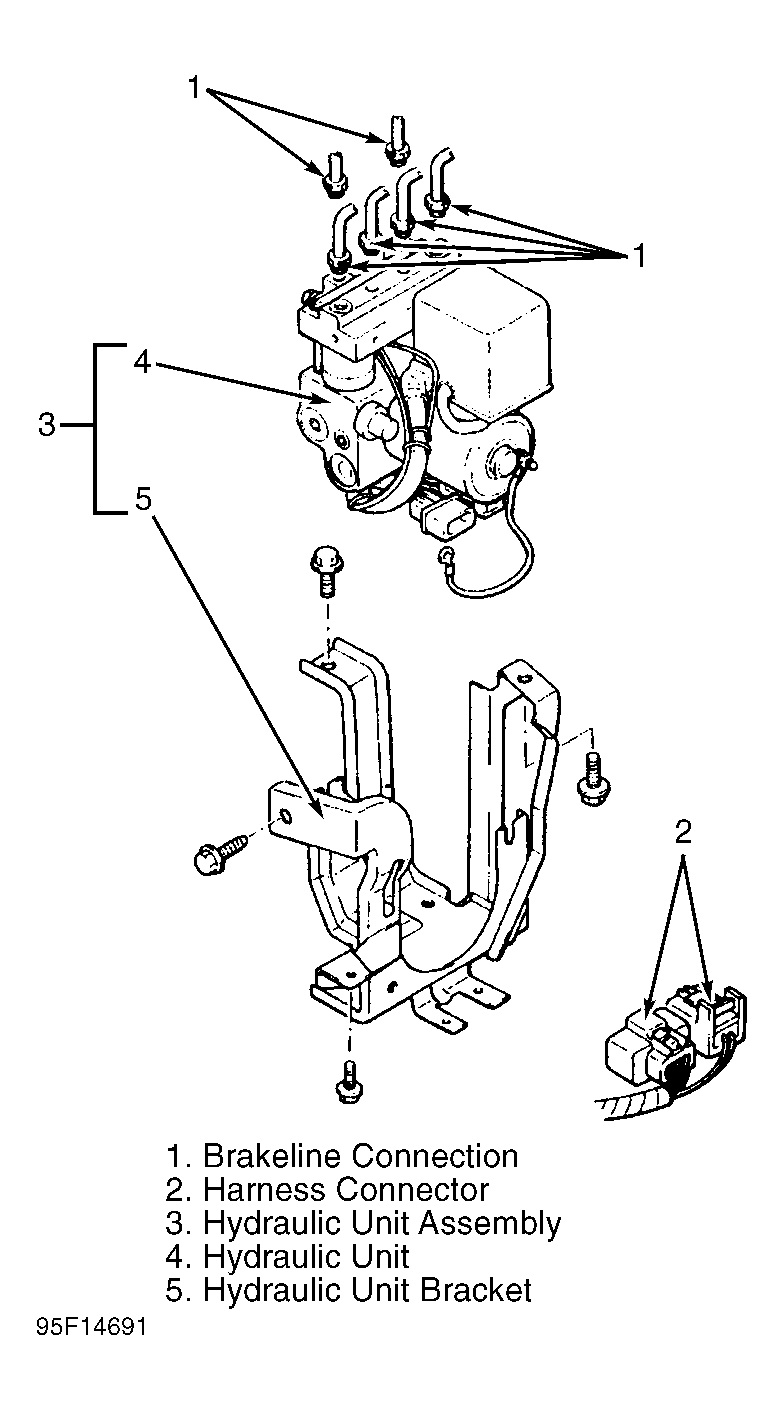

Fig 1: Exploded View Of Hydraulic Unit & Components

Courtesy of CHRYSLER CORP.

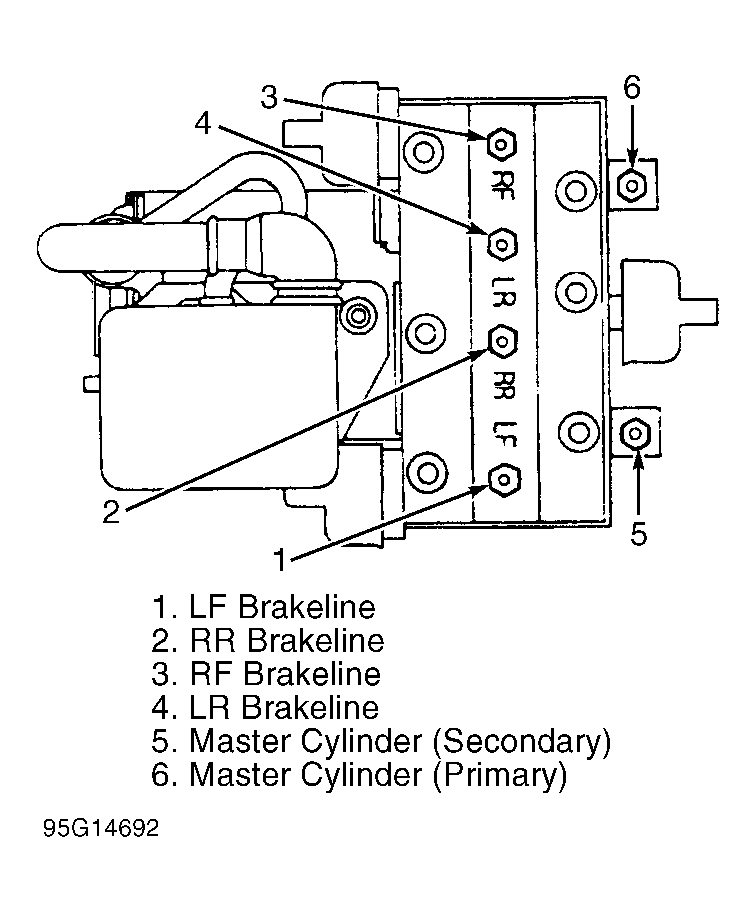

Fig 2: Identifying Brakeline Locations On Hydraulic Unit

Courtesy of CHRYSLER CORP.
