Volume Airflow Sensor

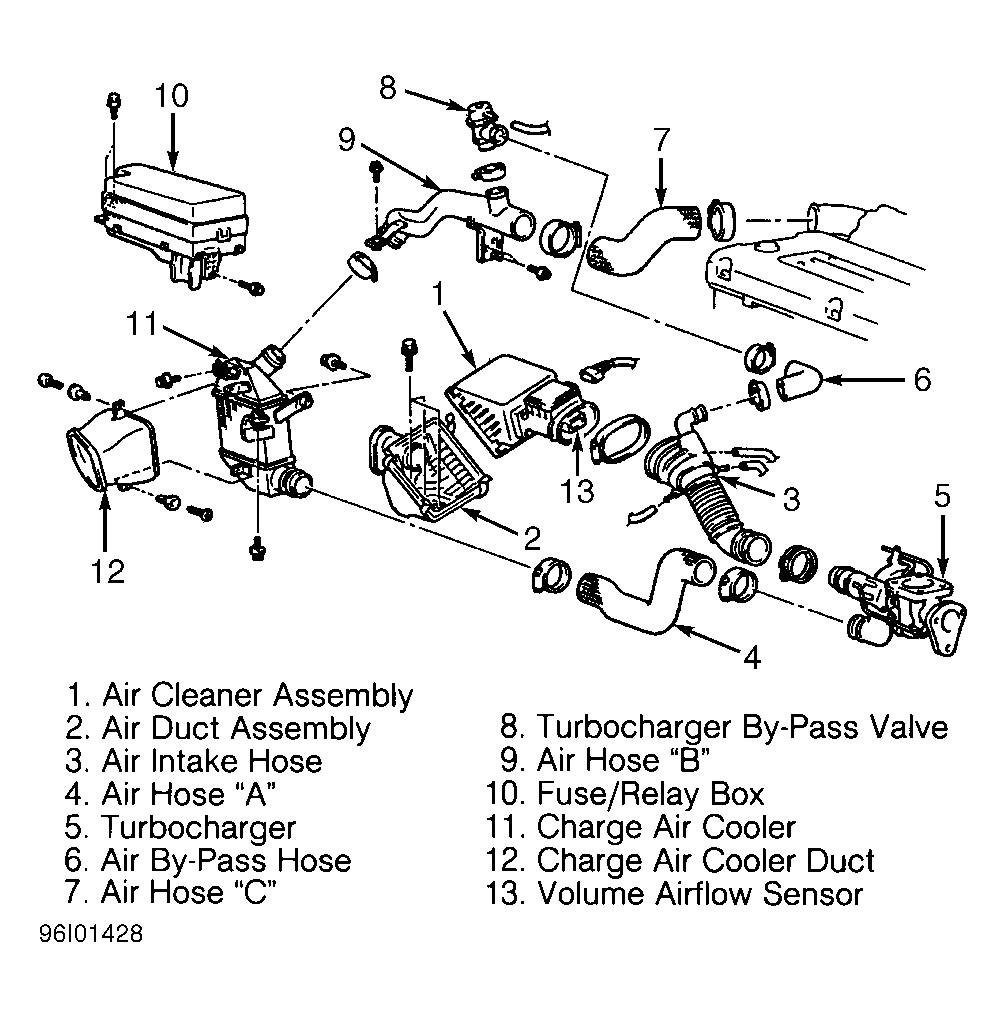

Volume airflow sensor is located on air cleaner assembly. See Figure . Barometric pressure sensor and intake air temperature sensor are incorporated into the volume airflow sensor. Volume airflow sensor delivers input signal to Engine Control Module (ECM) to indicate intake air volume. The ECM uses input signal for controlling fuel injection system.
