Manifold Differential Pressure Sensor

Manifold differential pressure sensor is located on top of intake manifold, near throttle body. See Fig 1 . Manifold differential pressure sensor delivers input signal to Engine Control Module (ECM) to indicate amount of engine vacuum in the intake manifold.

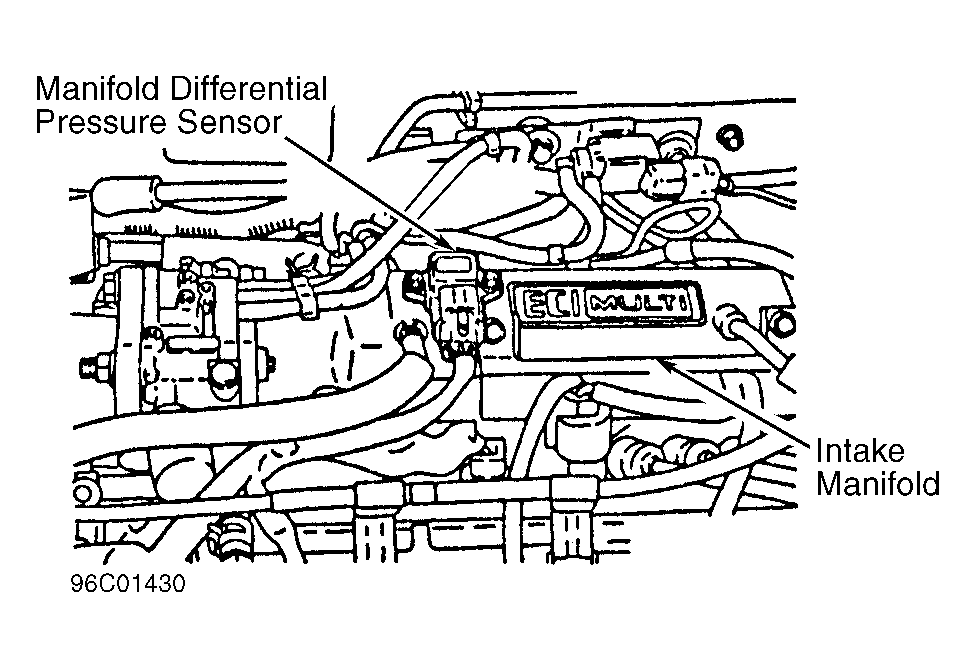

Fig 1: Locating Manifold Differential Pressure Sensor

Courtesy of CHRYSLER CORP.
