A/C Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse removal procedure. When installing center air outlet, place cool air by-pass lever on center air outlet in the fully downward position. See Fig 2.
  2. Push cool air by-pass damper lever on heater unit all the way toward you. Connect cable on the lever pin. Push the outer cable housing away from cool air by-pass damper lever so no looseness exists in the cable, and then install clip on the cable. See Fig 2.

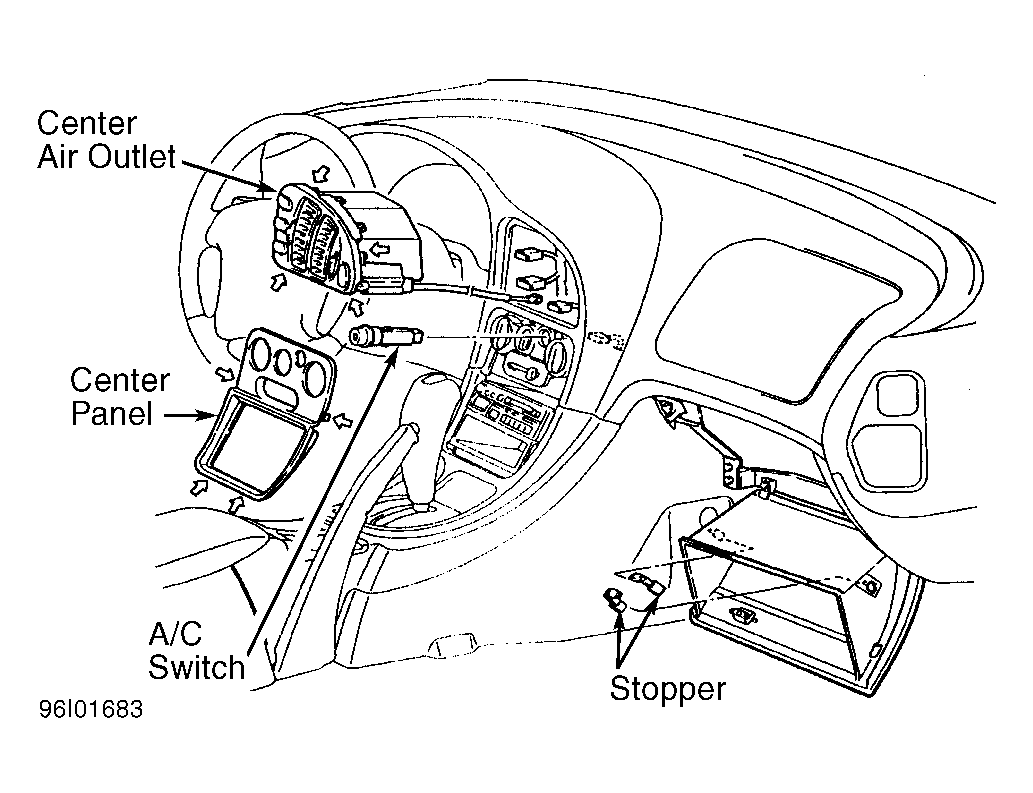

Fig 1: A/C Switch, Center Air Outlet, Center Panel & Stoppers
G96I01683Courtesy of CHRYSLER CORP.

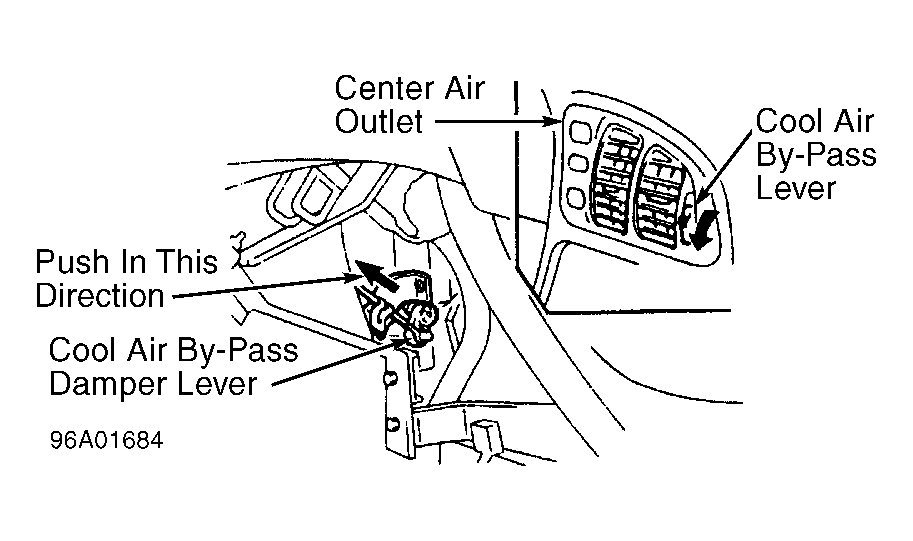

Fig 2: Installing Center Air Outlet
G96A01684Courtesy of CHRYSLER CORP.
