Junction Block

Junction block is located under driver's side of instrument panel. See Figure and Figure . For junction block multi purpose fuse identification and legend, see Fig 1.

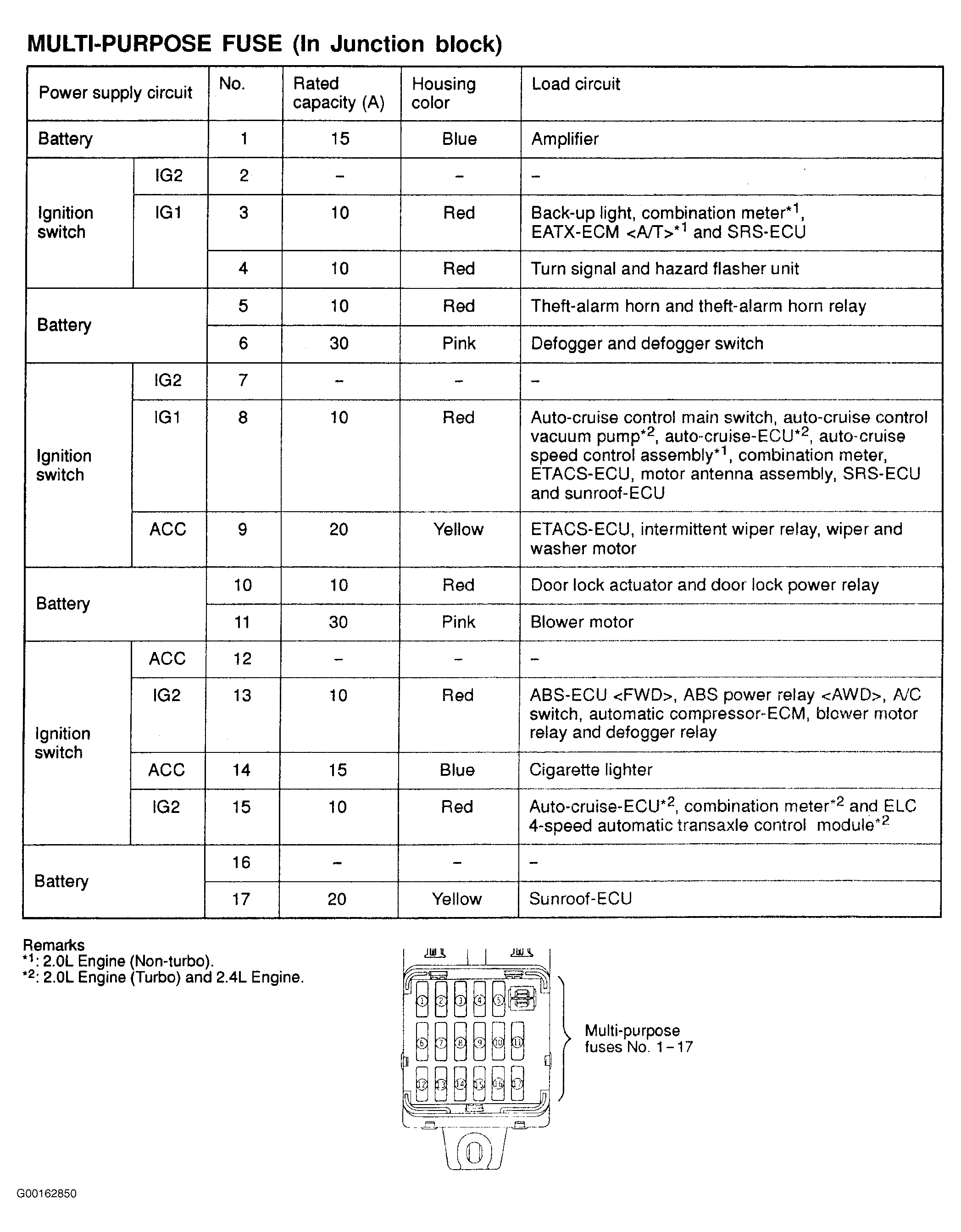

Fig 1: Identifying Junction Block Fuses

Courtesy of CHRYSLER CORP.
