Solenoid Control Valve: Notes

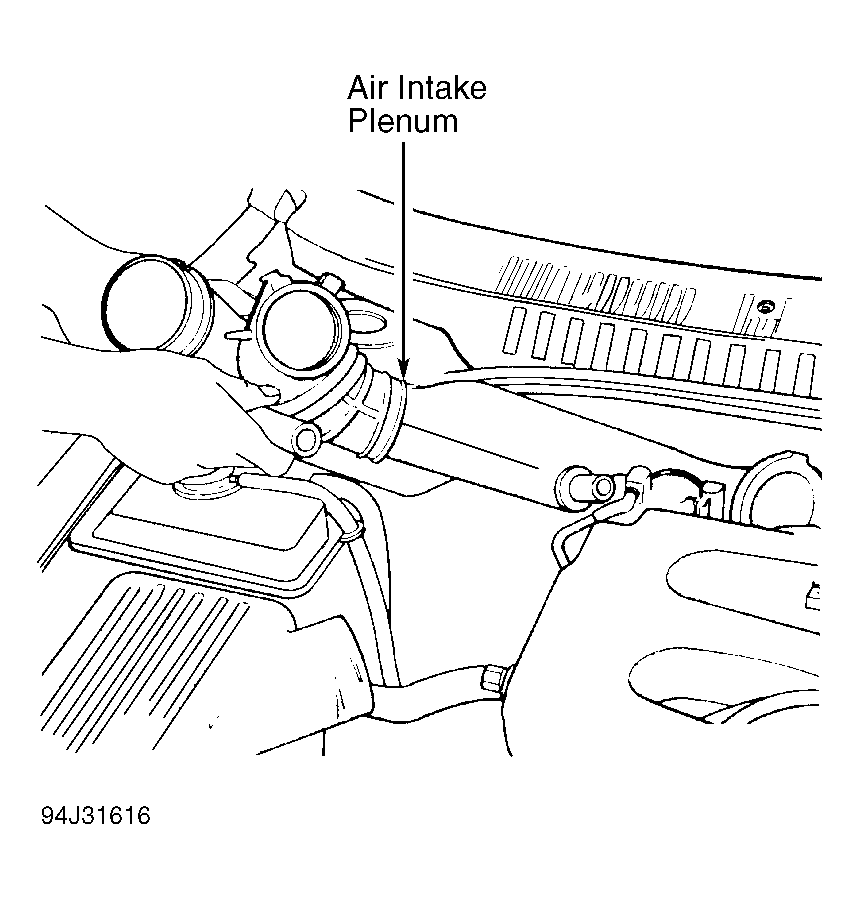

NOTE: If servicing a solenoid control valve on a vehicle with a 3.5L engine, removal of air intake plenum will allow improved access to control valve. When removing air intake plenum, disconnect plenum from air cleaner, throttle bodies, PCV air tube and idle air control motor. Remove air intake plenum from right side. See Figure .
