Description & Operation: Notes
WARNING: This page is about a different car, the 1996 Mitsubishi Mirage, 1996 Eagle Summit Wagon, and 1996 Eagle Summit. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all WARNINGS and SERVICE PRECAUTIONS.

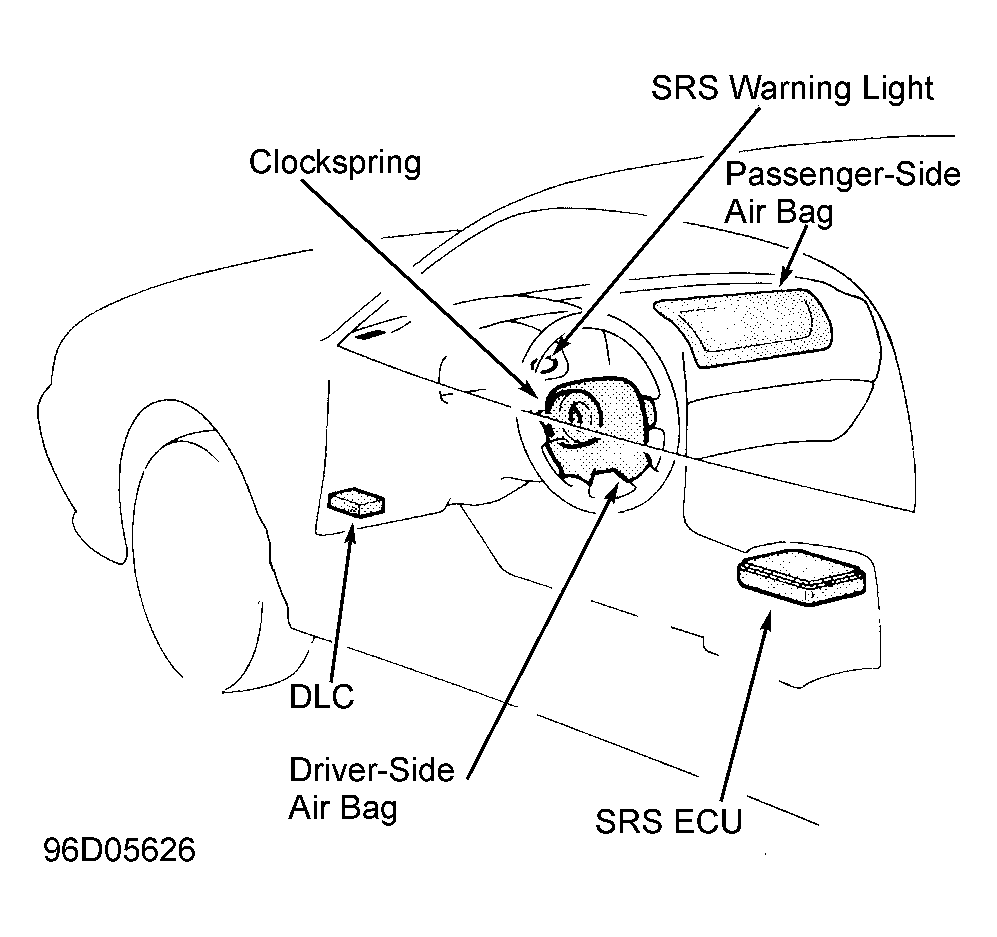

Supplemental Restraint System (SRS) consists of an SRS air bag control unit (SRS-ECU), air bag module, clockspring, and an SRS warning light. See Fig 1 . SRS-ECU contains a safing impact sensor and analog "G" sensor. Air bags deploys in a frontal (or near frontal) impact if ignition is on, and safing impact sensor and analog "G" sensor activate simultaneously.
