Cruise Control Cable

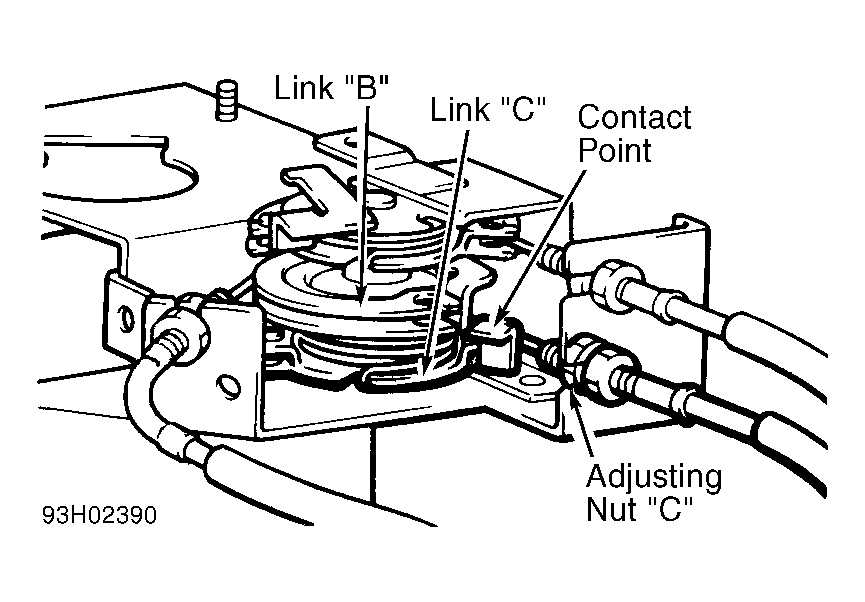

- Ensure cruise control cable is free of bends and kinks. Ensure idle speed is correct. Turn ignition off. Remove actuator cover. Turn link "C" until contact point touches contact point of link "B". See Fig 1
.
- With links "B" and "C" in that position, turn adjusting nut "C" until free play in cruise control cable is .04-.08" (1-2 mm). Tighten adjusting nut "C" until link "C" can touch link "B". Then back off adjusting nut "C" one turn.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
