Repair and Diagnosis: Transmission: Clutches: Overhaul

NOTE: If clutch tube, hose or clutch master cylinder has been removed, or if clutch pedal has become spongy, bleed system using only DOT 3 brake fluid. For exploded view of clutch master cylinder and clutch release cylinder, see Fig 1 and Fig 2 .

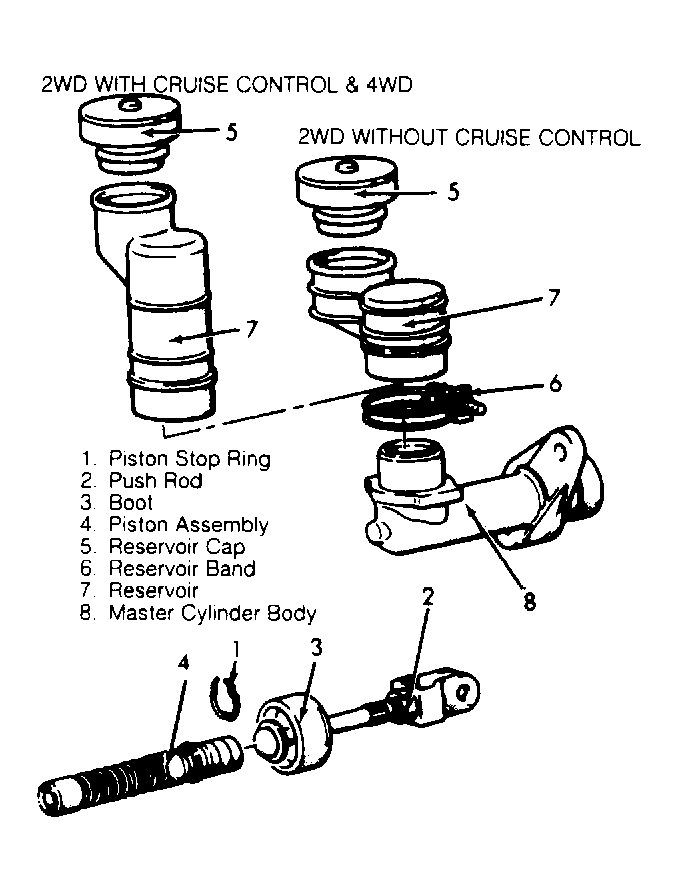

Fig 1: Exploded View Of Clutch Master Cylinder

Courtesy of CHRYSLER CORP.

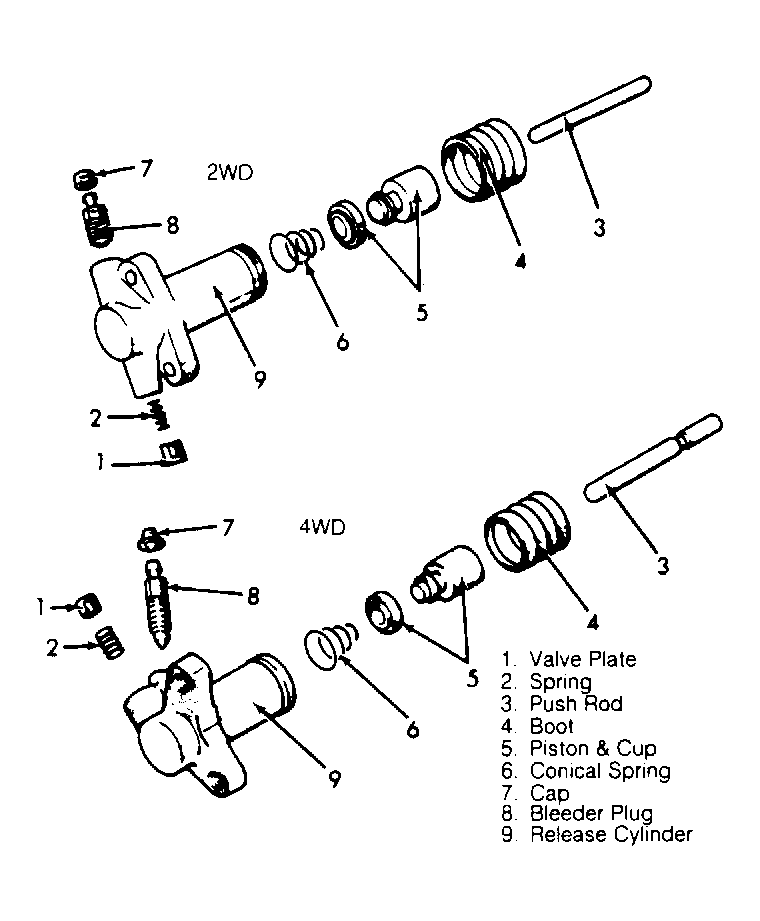

Fig 2: Exploded View Of Clutch Release Cylinder

Courtesy of CHRYSLER CORP.
