Ignition System: Distributor: Installation

1. If reference mark was not made as described in removal procedure, go to next step. If reference mark was made, install distributor by reversing removal procedure, then go to step 4).
2. Rotate crankshaft clockwise until piston No. 1 is at TDC of compression stroke. Align distributor housing and gear mating marks. Perform STEP 1. See Fig 1 .
3. Install distributor to engine while aligning housing mating mark with center of distributor installation stud. Perform STEP 2. See Fig 1 .
4. Adjust ignition timing. See appropriate ADJUSTMENTS article in the ENGINE PERFORMANCE section. Tighten distributor bolt to specification. See TORQUE SPECIFICATIONS.

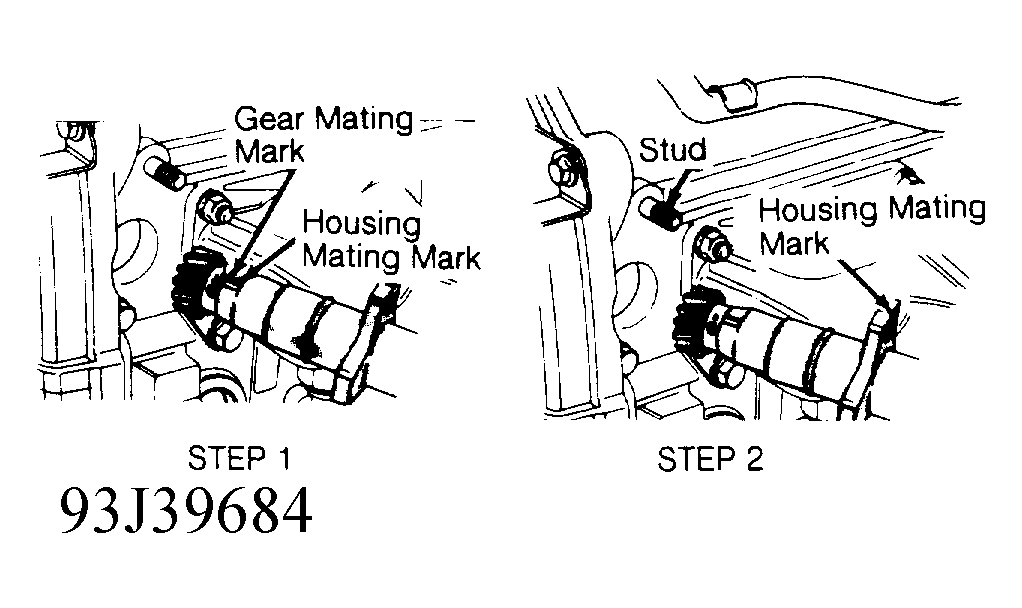

Fig 1: Installing Distributor (1.8L)

Courtesy of CHRYSLER CORP.
