Circuit Protection Devices

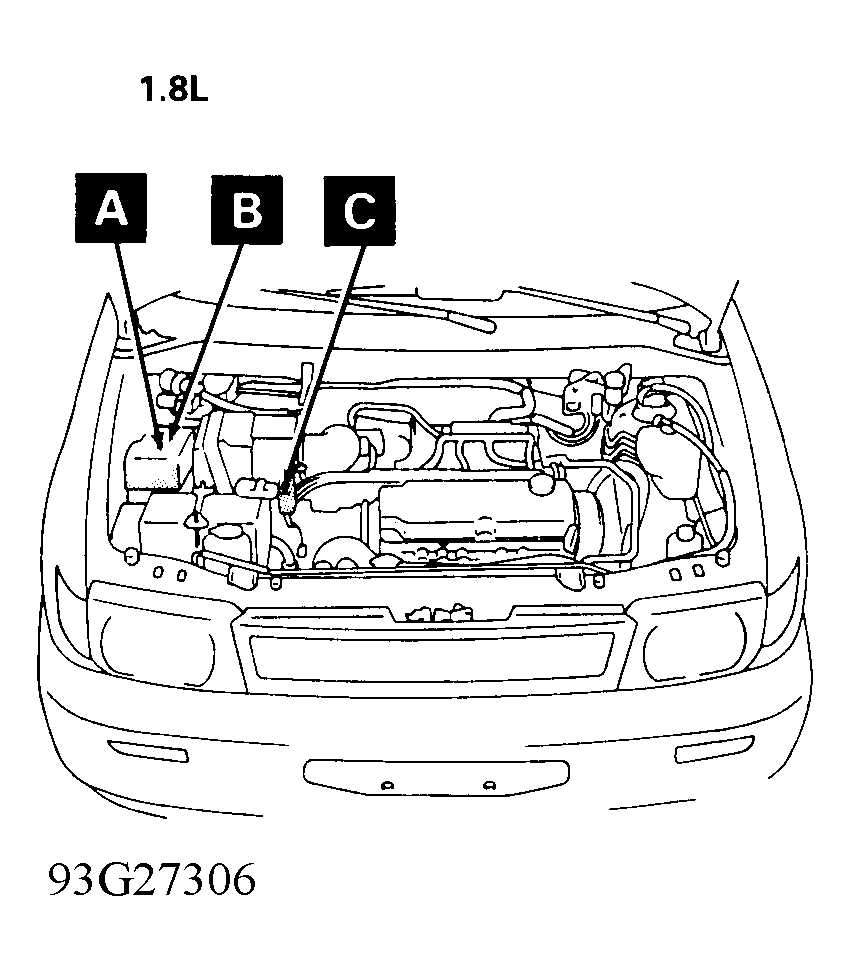

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse Block | Under left side of dash. See Figure & 4. | |
| Main Fusible Link (1.8L) | ||
| Location "C" | On positive battery cable terminal. See Figure . | |
| Close-Up View | On positive battery cable terminal. See Figure . | |
| Sub-Fusible Links (1.8L) | ||
| Location "A" | On positive battery cable terminal. See Figure . | |
| Close-Up View | In engine compartment relay block. See Figure . | |
| Engine Compartment Relay Block (1.8L) | ||
| Location "B" | On positive battery cable terminal. See Figure . | |
| Close-Up View | In engine compartment relay block. See Figure . | |
| Passenger Compartment Relay Block | Under left side of dash, near relay block. | |
