Wiring Diagrams

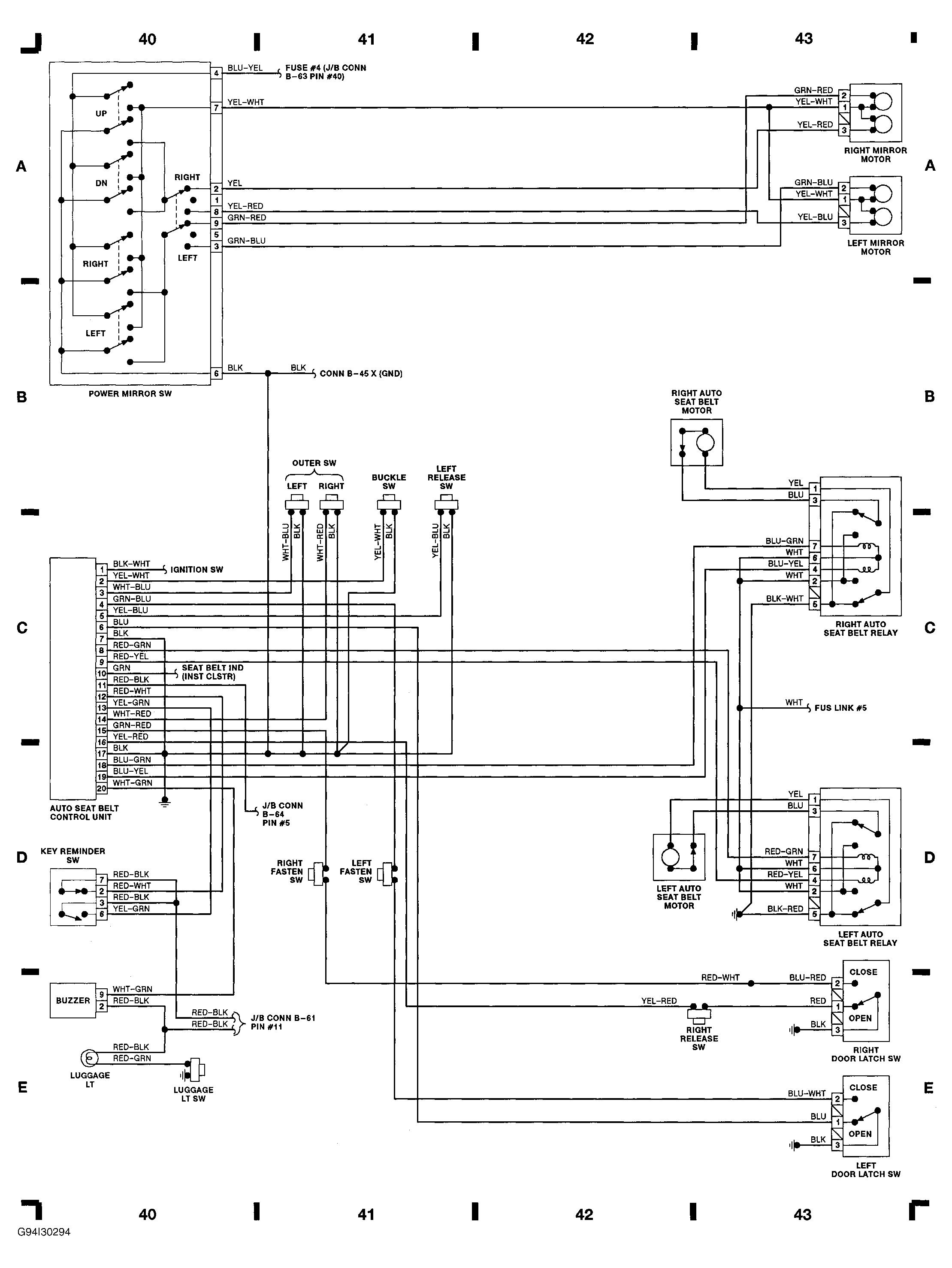

Fig 1: Power Mirror Switch & Passive Restraint (Auto Seat Belt) Control Unit (1993 Grid 40-43)

G94I30294

Fig 2: Passive Restraint Circuit Diagram (1994)
