Points Of Removal

  1. Step 8: Removing Key Reminder Connector

    Insert a standard tip screwdriver or similar tool in the slot and pry out the projection. See Fig 1 . Remove connector.

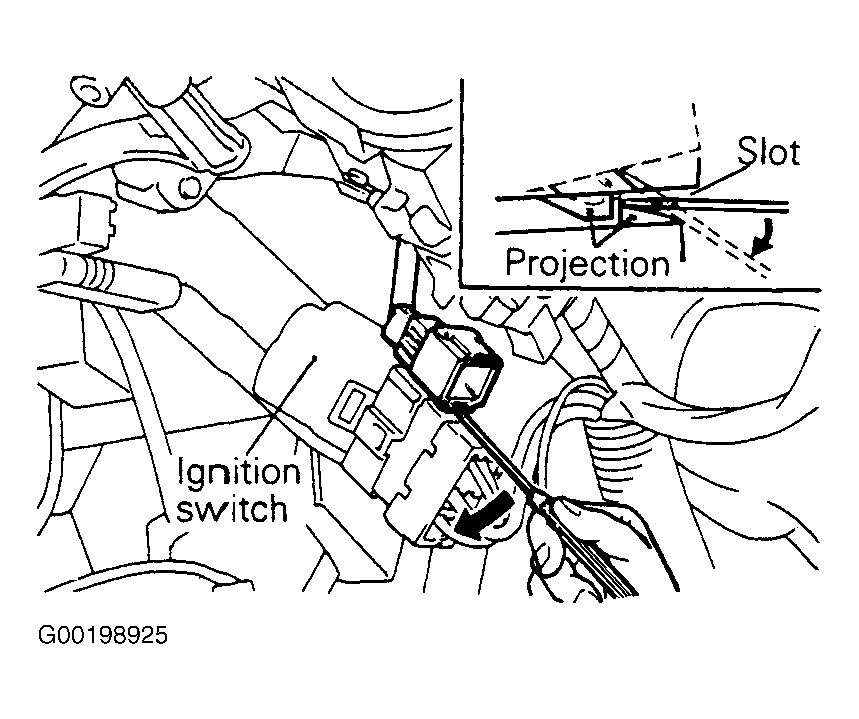

Fig 1: Removing Key Reminder Switch Connector
G00198925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
